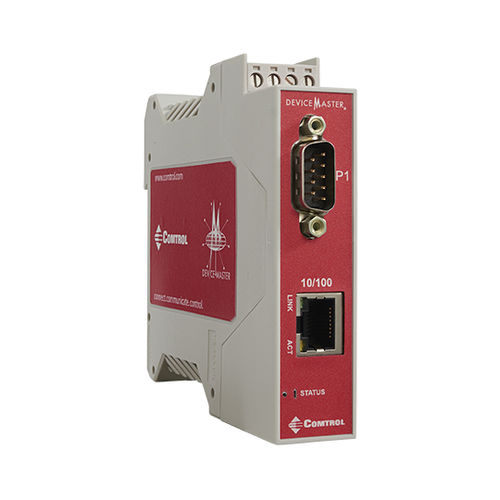

RS-232 device server DeviceMaster EIP-2101

RS422/RS485EtherNet/IPRJ45

DeviceMaster EIP-21011-port DIN rail serial device server (RS-232/422/485) with a DB9 connector and a single Ethernet port to support your industrial EtherNet/IP gatewayPart Number: 99601-9 DIN rail mountable One DB9 male serial port (RS-232/422/485) with a minimum of 25KV of surge protection Variable power input – 5-30VDC with a screw terminal connector One RJ45 Ethernet port Provide PLC connectivity – to standard EtherNet/IP™ serial devices Wide industrial operating temperature range (-40° to 75°C) Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode PortVision DX – configure network settings for the DeviceMaster and monitor status, update firmware and if necessary, resolve issues remotely Security features – SSL & SSH management, SSL serial data stream encryption The DeviceMaster EIP-2101 provides connectivity from a wide variety of EtherNet/IP controllers and applications to a vast array of serial and Ethernet TCP/IP raw/ASCII devices. With this gateway, you can connect virtually any EtherNet/IP based PLC, SCADA, HMI, OPC Server or other controller to ASCII interface barcode scanners, RFID readers, printers, encoders, weigh scales, vision systems and many others.
