RS-232 device server DeviceMaster ® UP

RS422/RS485Ethernet TCP/IPEthernet

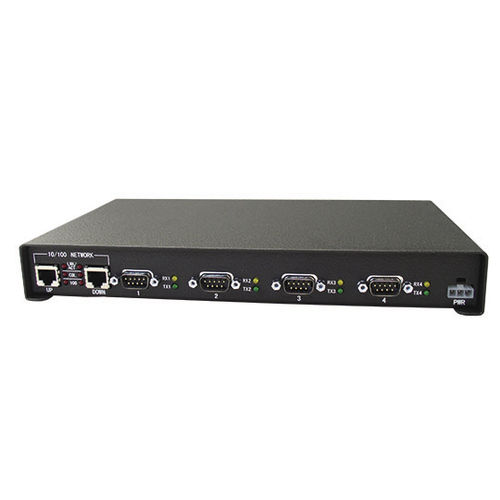

DeviceMaster ® UP 4-Port4-port panel mount serial device server (RS-232/422/485) with four DB9 connectors and dual Ethernet ports to support your industrial EtherNet/IP gatewayPart Number: 99447-3 Panel or rack mount shelf installation Four DB9 male serial ports (RS-232/422/485) with a minimum of 15KV of surge protection Variable power input – 9-30VDC with a screw terminal connector Dual RJ45 Ethernet ports to daisy-chain another network device Provide PLC connectivity – to standard EtherNet/IP™ serial devices Wide industrial operating temperature range (-37° to 74°C) PortVision DX – configure network settings for the DeviceMaster and monitor status, update firmware and if necessary, resolve issues remotely Security features – SSL & SSH management, SSL serial data stream encryption The DeviceMaster UP 4-port provides connectivity from a wide variety of EtherNet/IP controllers and applications to a vast array of serial and Ethernet TCP/IP raw/ASCII devices. With this gateway, you can connect virtually any EtherNet/IP based PLC, SCADA, HMI, OPC Server or other controller to ASCII interface barcode scanners, RFID readers, printers, encoders, weigh scales, vision systems and many others.
