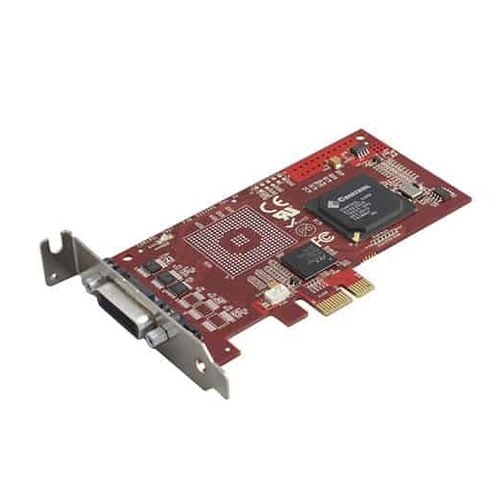

PCI Express interface card 30136-3
RS-232RS422/RS485industrial

PCI Express interface card
PCI Express interface card
PCI Express interface card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Bus
RS-232, RS422/RS485
Applications
industrial
Other characteristics
low-profile

Description

RocketPort ® EXPRESS 4/8-PortPCI Express 8-Port serial card The RocketPort EXPRESS 8-Port serial card delivers four or eight ports of additional in-server serial connectivity with communication speeds up to 460 KbpsPart Number: 30136-3 PCI Express Serial x1, x2, x4, x8, x12 and x16 Lane Connectivity Low-profile or Standard Height Compatible RS-232, RS-422, RS-485 Software-selectable Serial Ports Compatible with 4 and 8 port Interfaces High Performance Serial Port Expansion Cards with communication Speeds up to 460 Kbps Support for the most popular Windows operating systems (including Windows® 10) and Linux kernels Windows driver, which can be configured for interrupt or polling mode Free troubleshooting tools in the event you want to diagnose an issue: Hardware diagnostics, LCOM (Linux tool for testing serial ports), Pepperl+Fuchs Comtrol Utility, which includes Test Terminal (WCOM2) for serial port testing and Port Monitor for monitoring ports This RocketPort EXPRESS card product delivers four or eight ports of additional in-server serial connectivity via an external interface that is purchased separately. A data communication speed up to 460 Kbps is connected through software-selectable RS-232/422/485 ports. The card is compatible with systems that have x1, x2, x4, x8, x12 or x16 PCI Express expansion slots. It is designed for standard and low-profile PCs and servers. RocketPort EXPRESS products are European RoHS directive compliant Includes: RocketPort Express 8 Port Device Interface Cable 42" Bracket (1)
