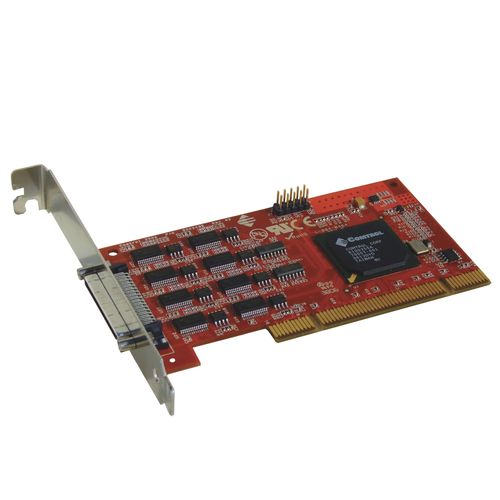

RS232 multi-port serial communication card 30003-8
RS422/RS485high-performancePCI bus

RS232 multi-port serial communication card
RS232 multi-port serial communication card
RS232 multi-port serial communication card
Add to favorites
Compare this product


Characteristics

Other characteristics
RS232, RS422/RS485, PCI bus, high-performance
Number of ports
8 ports, 4 ports

Description

RocketPort ® INFINITY Quad/ Octa Cable BulkThis RocketPort INFINITY card product package includes 50 cards that each deliver four or eight-ports of additional in-server serial connectivity and have communication speeds up to 921 KbpsPart Number: 30003-8 PCI four or eight port serial adapter sold in packs of 50 32 or 64 Bit 3.3 or 5 volt universal PCI or PCI-X connectivity Low-profile or standard height compatible RS-232, RS-422, RS-485 software-selectable serial ports High performance cards with communication speeds up to 921 Kbps Support for the most popular Windows operating systems (including Windows® 10) and Linux kernels Windows driver, which can be configured for interrupt or polling mode Free troubleshooting tools in the event you want to diagnose an issue: Hardware diagnostics, LCOM (Linux tool for testing serial ports), Pepperl+Fuchs Comtrol Utility, which includes Test Terminal (WCOM2) for serial port testing and Port Monitor for monitoring ports This RocketPort INFINITY card product package includes 50 cards that each deliver four or eight-ports of additional in-server serial connectivity via a fan-out cable purchased separately. Data communication of 921Kbps is connected through RS-232/422/485 software-selectable ports. The serial adapter card is a low-profile design suitable for use in both standard servers and 2U rackmount servers. Product is fully compatible with systems that have 32 or 64 bit 3.3 or 5 volt PCI and PCI-X expansion slots. The INFINITY design utilizes the Pepperl+Fuchs Comtrol Unity ASIC technology that takes full advantage of the 66 MHz BUS speed available on PCI-X servers.
