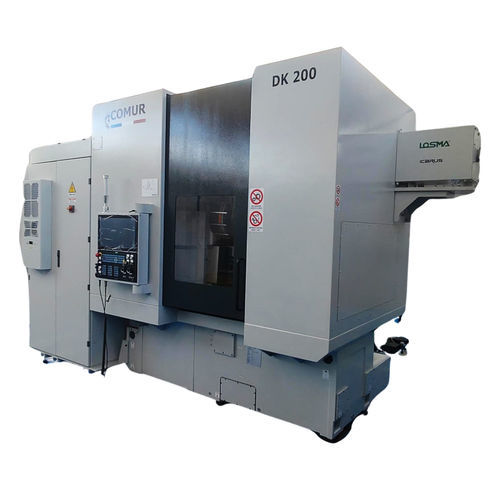

CNC gear-hobbing machine DK 200

vertical

Product overview
The DK 200 vertical gear hobbing machine is designed for producing small-to-medium straight and helical cylindrical gears, including shafts and pinions. Its monoblock layout and compact footprint facilitate integration into production lines and flexible factory layouts.

Key features

• Max. module: 5 mm
• Max. workpiece diameter: 200 mm
• Max. hobbing width: 155 mm

Technical data
Max. module: 5 mm
Max. workpiece diameter: 200 mm
Max. hobbing width: 155 mm
Min./max. distance between hob face and worktable face: 20 / 170 mm
Max. tool dimensions (ø x L): 130 x 220 mm
Max. tangential shifting: 170 mm
Hob speed range: 100 ÷ 600 rpm
Worktable speed range: 0 ÷ 200 rpm

Technical specifications

• Suitable for prototyping and small-to-large series production
• Optional asymmetric hob head for critical gear cutting
• Optional ring-loader for automatic loading/unloading and unmanned operation

Applications

• Manufacture of cylindrical gears, shafts and pinions
• Typical sectors: automotive, industrial transmissions, machine tools
