CNC gear-hobbing machine DK 500

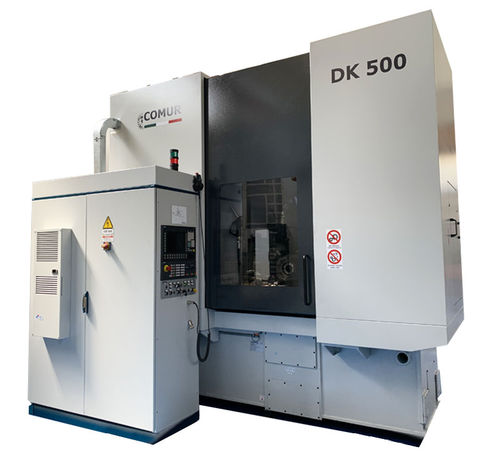

CNC gear-hobbing machine - DK 500 - COMUR srl
CNC gear-hobbing machine - DK 500 - COMUR srl
CNC gear-hobbing machine - DK 500 - COMUR srl - image - 2
CNC gear-hobbing machine - DK 500 - COMUR srl - image - 3
CNC gear-hobbing machine - DK 500 - COMUR srl - image - 4
Add to favorites
Compare this product
Go to the COMUR srl website for more information

Characteristics

Control type
CNC
Module

Max.: 12 mm
(0.47 in)

Min.: 0 mm
(0 in)

Part diameter

Max.: 500 mm
(20 in)

Min.: 0 mm
(0 in)

Spindle speed

Max.: 450 rpm
(2,827.433 rad.min-1)

Min.: 80 rpm
(502.655 rad.min-1)

Gear hob diameter

Max.: 210 mm
(8.3 in)

Min.: 0 mm
(0 in)

Description

Product
COMUR DK 500 gear hobbing machine.

Key features
  • Max. module: 12 mm
  • Max. workpiece diameter: 500 mm
  • Max. hobbing width: 400 mm


Technical data (table)
Max. module: mm 12
Max. workpiece diameter: mm 500
Max. hobbing width: mm 400
Min./max. distance between hob face and worktable face: mm 35 / 360
Max. tool dimensions (Ø x L): mm 210 x 250
Max. tangential shifting: mm 200
Hob speed range (rpm): 80 ÷ 450
Worktable speed range (rpm): 0 ÷ 100

Specifications / Technical specifications
  • Max. module: 12 mm
  • Max. workpiece diameter: 500 mm
  • Max. hobbing width: 400 mm
  • Min./max. distance between hob face and worktable face: 35 / 360 mm
  • Max. tool dimensions (Ø x L): 210 x 250 mm
  • Max. tangential shifting: 200 mm
  • Hob speed range: 80 ÷ 450 rpm
  • Worktable speed range: 0 ÷ 100 rpm
