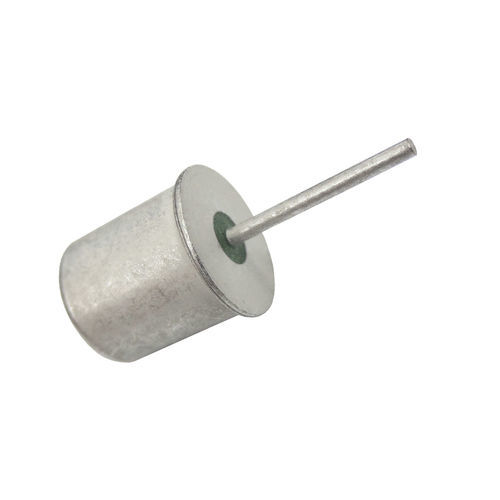

Analog tilt switch CM1460
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
Switching Voltage: 120Vac Max.
Switching Current: 1.0A Max.
Switching Capacity: 100VA Max.
Operating Angle: 60°± 10°
Contact Resistance: 3.0 Ohms Max.
Size: Over All Length: .813in (20.65mm)
Diameter: 0.322in (8.19mm)
Electrode Diameter: 0.040in (1.016mm)
Tip-Over Switch – General Purpose
Omnidirectional
