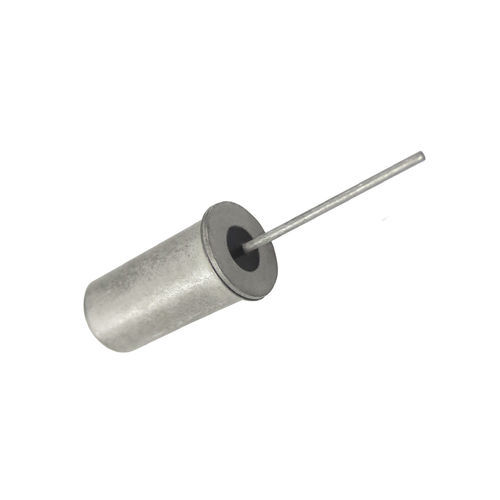

Analog tilt switch CW1307 series
Add to favorites
Compare this product
Characteristics
- Type
- analog
Description
RoHS COMPLIANT
Contact Capacity: 60V Max
Contact Resistance: 30 ohms Max.
Differential Angle: 15° Max
Size: Length 20.95 (.825in)
Diameter: 5.94mm (.234in)
FEATURES
• Resistant to Ambient Environmental Conditions
• Case Material : Tin Plated
• Hermetically Sealed & Inert Gas Filled
• Customization Available
GENERAL SPECIFICATIONS -
Contact Capacity - 60 Volts MAX, 0.25 A MAX, 3 VA MAX
Contact Résistance - 30 OHMS MAX Measured at 10° Below Horizontal at 5 VDC
Differential Angle - 15° MAX
Make Angle - 10° Below Horizontal
Break Angle - 10° Above Horizontal
Operating Température - -37° to 100°C
