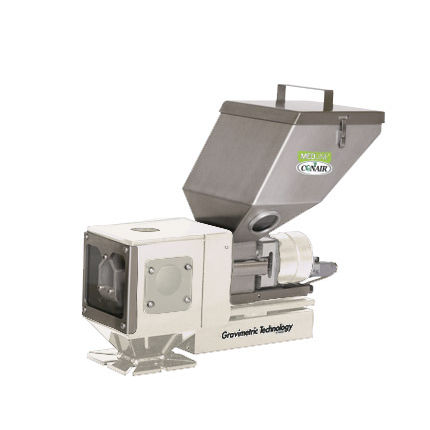

Granules loss-in-weight feeder MedLine® TrueFeed series

for plastic pelletsgravimetricvolumetric

Overview
Optimize medical polymer feeding with the MedLine® TrueFeed gravimetric feeder. Designed for cleanroom-ready production, the unit uses continuous loss-in-weight metering with closed-loop speed control to deliver precise, consistent additive and color dosing for injection molding, extrusion and blow molding. The MedLine® TrueFeed is calibrated to ISO medical standards and finished in RAL 9003 for hygienic environments. The intuitive bilingual touchscreen simplifies operation and reduces setup time.

Features

• Tool-free material and color changes for fast maintenance and reduced downtime.
• Continuous loss-in-weight metering with closed-loop speed control for accurate feeding rates.
• MedLine calibration to ISO medical standards and RAL 9003 paint finish for cleanroom compatibility.
• Bilingual, user-friendly touchscreen common to all models for streamlined operation.
• Dispensing cylinder driven by a stepper motor for consistent, non-pulsing feed and superior dosing accuracy compared with auger systems.

Frequently Asked Questions

• How does this reduce material costs? The steady, non-pulsing dispensing cylinder minimizes overfeed and waste, improving material yield.
• How does it improve productivity? Quick material and color changeover plus pre-calibrated MedLine settings reduce machine downtime versus volumetric feeders.
• How accurate is the dosing? The combination of loss-in-weight measurement and stepper-driven dispensing cylinder provides highly repeatable, precise dosing for consistent product quality.

Options

• Compressed air loading lid — assists handling of granular pellets.
• Throat adapters — multiple adapters available; standard adapter indicated as 76 mm diameter inlet and 45 mm square outlet.
• Compressed-air vacuum loading lid — improves pickup for dusty/granular materials and includes a filter to trap fines.
• Water-cooled throat adapter — isolates temperature when introducing temperature-sensitive additives into hot material.
• Dispense cylinder — non-pulsing cylinders in several sizes for different accuracy requirements; quick-change design for cleaning.
• Alarms (visual and/or audible) — optional low material level alerts.

Resources
Full specification sheet and product literature available for detailed performance data and model comparisons.

Technical specifications

• Product family/series: MedLine® TrueFeed
• Feeding technology: Gravimetric (continuous loss-in-weight) with closed-loop speed control
• Calibration: Calibrated to ISO medical standards (MedLine version)
• Finish: RAL 9003 cleanroom-ready paint
• Control: Bilingual touchscreen interface common to all models
• Drive: Dispensing cylinder driven by stepper motor for consistent, non-pulsing feed
• Applications: Injection molding, extrusion, blow molding
• Material handling options: Compressed-air loading lid; compressed-air vacuum loading with filter
• Throat adapters: Multiple adapters available; standard adapter cited as 76 mm diameter inlet and 45 mm square outlet
• Temperature management option: Water-cooled throat adapter for thermal isolation
• Dispense cylinder sizes: Several cylinder sizes available
• Serviceability: Tool-free material and color change procedure; quick disassembly for cleaning and maintenance
• Alarms: Visual and/or audible low material level alarms available
