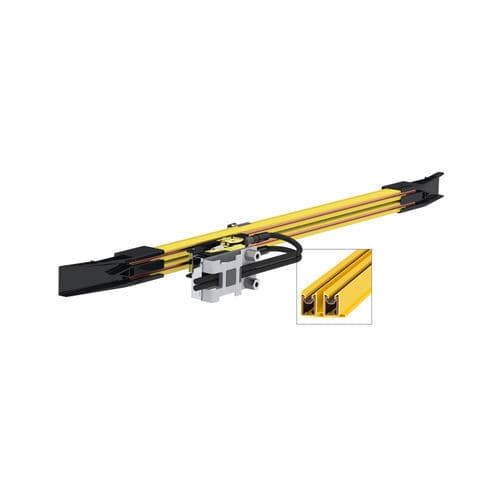

Bipolar conductor rail ChargeLine 0865 Seriescopperhigh-frequencyAC/DC
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Material
- copper
- Electrical characteristics
- bipolar, AC/DC, high-frequency
- Structure
- compact, modular
- Primary current
100 A
Description
ChargeLine 0865
Two-pole compact conductor rail system for intermittent charging applications with high cycle demands.
Key Features
- Designed for high-frequency opportunity charging
- Durable charging segments with millions of contact cycles
- Voltage up to 500 V AC/DC, 32 A per module (100 A rail current)
- Space-saving design for compact installations
- Preassembled segments according to customer specifications
- Modular and expandable system design
- Compatible with MultiLine 0835 Series
Typical Applications
- Shuttle systems
- Automated Guided Vehicles (AGVs)
- Indoor systems with limited installation space
Standard Application Data
- Nominal Current (Rail): 100 A
- Nominal Current (System, 100% duty cycle): 32 A
- Voltage: up to 500 V AC/DC
- Installation Space (W x H): 38 mm x 98 mm
- Operating Environment: Indoor
- Track Configuration: straight or segmented
