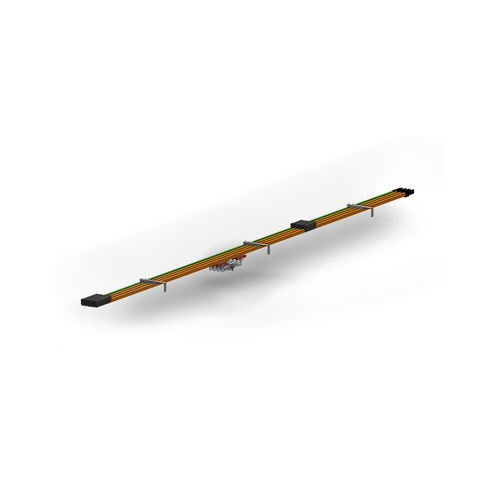

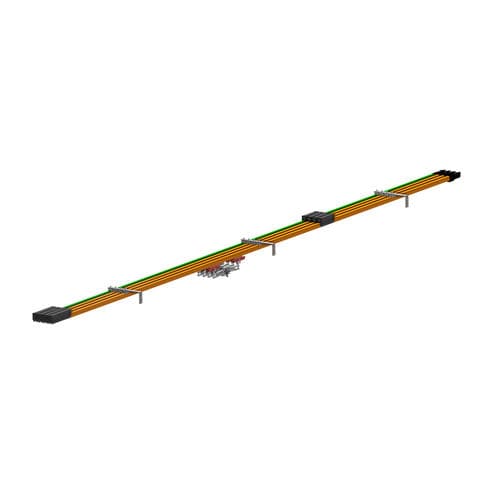

Single-pole conductor rail Hevi-Bar II

aluminumheavy-dutymodular

Hevi-Bar II is a single-pole conductor rail system according to US-standards and used globally in industrial applications and Overhead Cranes. Special Features - Robust single-pole insulated conductor rail system compliant with US standards - Modular configuration with side or bottom entry options - Available with DURA-COAT coating for enhanced corrosion resistance in aggressive environments - Conductor rail material: aluminum with stainless steel contact surface - Wide ampacity range up to 1500 A - Optional heater wire (500 A version) - High heat resistance with multiple insulation grades available Main Applications - Heavy-duty indoor and outdoor crane systems - Ideal for harsh industrial environments such as galvanizing lines, electroplating plants, foundries, chemical facilities, and ore-handling cranes - Suitable for applications with high power demand and challenging ambient conditions Standard Application Data - Nominal Current (100% duty cycle) [A]: 500 | 700 | 1000 | 1500 - Nominal Voltage [V]: 600 - Insulation Material: PVC with mid or extreme heat-resistant covers - Temperature Range: max. 135 °C (280 °F) - Cover Temps - Low: 70 °C (160 F) - Cover Temps - Med: 120 °C (250 F) - Cover Temps - Extreme (700 A and 1000 A only): - 50 to 135 °C (-60 F to 280 F) - IP Protection Class: IP10 - Typical Pole Arrangement: 4 poles - Installation Space Required: - Width: 400 / 500 mm - Height: 250 / 350 mm - Support / Hanger Distance: - 1.5 m (500 A) - 3.0 m (1500 A) - Curves: Available on request - Heater Wire: Yes (500 A only)
