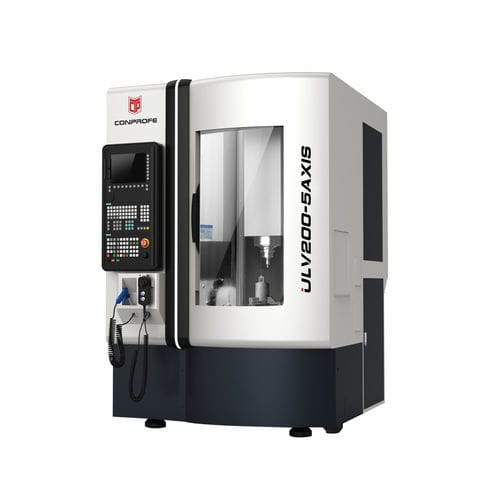

5-axis CNC machining center ULV200
verticalfor compositesfor plastics

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for composites, for plastics, for glass, for ceramics, quartz, for hard and brittle materials
Spindle mount
HSK-E40, HSK-E32
Number of tool stations
16 tools, 22 tools
Applications
for heavy-duty machining
Other characteristics
high-performance, high-precision, ultrasonic
X travel

250 mm
(10 in)

Y travel

250 mm
(10 in)

Z travel

250 mm
(10 in)

Rotational speed

30,000 rpm, 36,000 rpm
(188,496 rad.min-1, 226,195 rad.min-1)

Workpiece max height

200 mm
(8 in)

Table rotation (C axis)

360 °

Work feed X-axis

3,000 mm/s

Work feed Y-axis

3,000 mm/s

Work feed Z-axis

3,000 mm/s

Table load capacity

30 kg
(66 lb)

Tool weight (max)

1 kg
(2.2 lb)

Positioning accuracy

0.005 mm
(0 in)

Repeatability

0.004 mm
(0 in)

Weight

1,900 kg
(4,188.78 lb)

Overall length

1,285 mm
(50.6 in)

Overall width

1,795 mm
(70.7 in)

Overall height

2,030 mm
(79.9 in)

Description

✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material ✅Supercritical CO2 internal cooling system and MQL system available for clean machining ✅Full closed loop control enabled by High Precision Linear Encoder ✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy ✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function APPLICATION: Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
