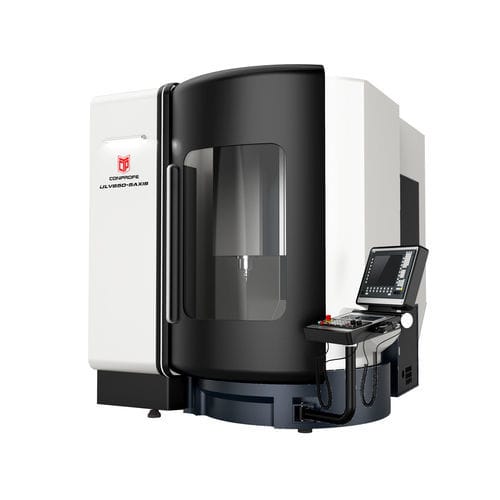

5-axis CNC machining center ULV650verticalfor plasticsfor glass
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for plastics, for glass, for ceramics, quartz, for hard and brittle materials
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools
- Other characteristics
- high-performance, high-precision, ultrasonic
- X travel
650 mm
(26 in)- Y travel
620 mm
(24 in)- Z travel
500 mm
(20 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Workpiece max height
650 mm
(26 in)- Table rotation (C axis)
360 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
400 kg
(882 lb)- Tool weight (max)
6 kg
(13.2 lb)- Positioning accuracy
0.006 mm
(0 in)- Repeatability
0.005 mm
(0 in)- Weight
11,000 kg
(24,250.85 lb)- Overall length
2,478 mm
(97.6 in)- Overall width
3,600 mm
(141.7 in)- Overall height
3,050 mm
(120.1 in)
Description
✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material
✅Supercritical CO2 internal cooling system and MQL system available for clean machining
✅Full closed loop control enabled by High Precision Linear Encoder
✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy
✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function
APPLICATION:
Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
