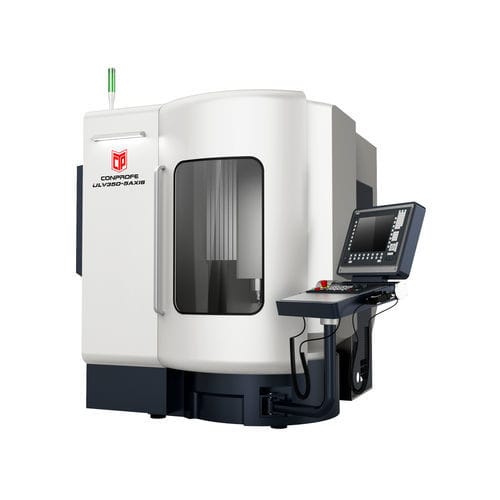

5-axis CNC machining center ULV350verticalfor compositesfor plastics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for plastics, for glass, for ceramics, quartz, for hard and brittle materials
- Spindle mount
- HSK A-63
- Number of tool stations
- 15 tools
- Applications
- cutting, for the automobile industry, for the aeronautical industry, for medical applications, for drilling, for aeronautics, for titanium, for panels, for vehicles, for aluminum plates, for profiles, for aluminum profiles, for the plastics industry
- Other characteristics
- high-speed, milling, high-performance, high-productivity, high-precision, for high-precision cutting, ultrasonic, all-in-one, contour
- X travel
380 mm
(15 in)- Y travel
420 mm
(17 in)- Z travel
365 mm
(14 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Workpiece max height
350 mm
(14 in)- Table rotation (C axis)
360 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
100 kg
(220 lb)- Tool weight (max)
4 kg
(8.8 lb)- Positioning accuracy
0.005 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
6,000 kg
(13,227.74 lb)- Overall length
1,900 mm
(74.8 in)- Overall width
2,940 mm
(115.7 in)- Overall height
2,350 mm
(92.5 in)
Description
✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material
✅Supercritical CO2 internal cooling system and MQL system available for clean machining
✅Full closed loop control enabled by High Precision Linear Encoder
✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy
✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function
APPLICATION:
Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
