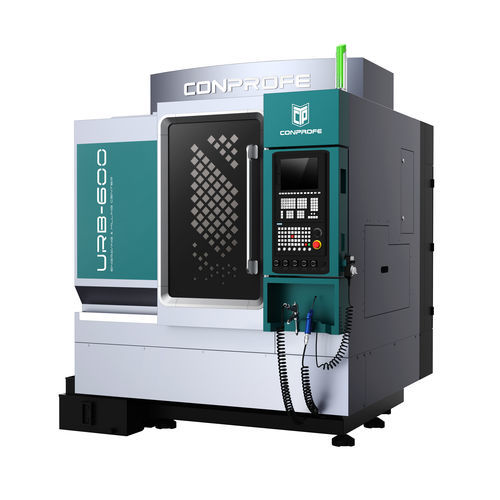

Engraving CNC machining center URB-6003-axisverticalHSK-E32
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E32
- Number of tool stations
- 15 tools
- Applications
- for the automobile industry
- Other characteristics
- high-performance, engraving
- X travel
600 mm
(24 in)- Y travel
500 mm
(20 in)- Z travel
300 mm
(12 in)- Rotational speed
32,000 rpm, 40,000 rpm
(201,062 rad.min-1, 251,327 rad.min-1)- Power
27 kVA
(36.71 hp)- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Table load capacity
300 kg
(661 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.005 mm
(0 in)- Repeatability
0.003 mm
(0 in)- Weight
5,000 kg
(11,023.11 lb)- Overall length
1,850 mm
(72.8 in)- Overall width
2,100 mm
(82.7 in)- Overall height
2,395 mm
(94.3 in)
Description
Feature:
1. All-in-one machine tool for processing hard-brittle materials, composite materials, workpiece requiring
2. high gloss/mirror finish, small parts, micro-holes, etc.
3. ISO-20/HSK-E25/HSK-E32/HSK-E40 ultrasonic spindles with a max. speed of 50,000rpm available
4. Supercritical Carbon Dioxide (ScCO2) Cryogenic Cooling System and MQL internal cooling system available for clean machining
5. Extended Tool Magazine available to meet various machining needs.
6. 4-/5-axis Rotary table addable to realize multi-face machining
Application:
Ideally suited for high-speed and high-precision machining of precision parts of hard-brittle materials (ceramics,
sapphire, glass, silicon carbide), carbon-fiber reinforced plastics, superalloys (titanium alloy, etc.) and other hard-to-cut materials.
