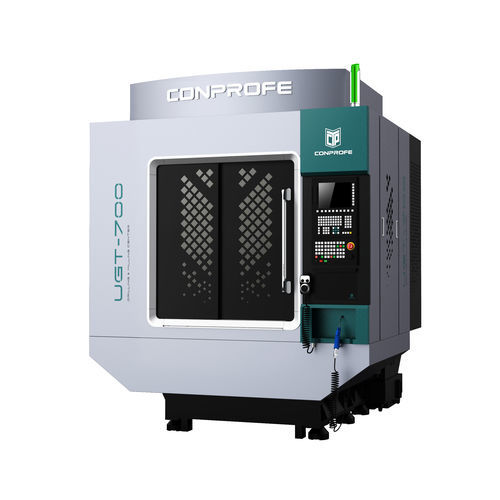

3-axis CNC machining center UGT-700verticalfor compositesfor glass
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for glass, for ceramics, quartz, for hard and brittle materials
- Spindle mount
- BT 30
- Number of tool stations
- 21 tools
- Applications
- drilling, for molds, for medical applications, for titanium, for the steel industry, for drilling, for vehicles, for small parts production, for aluminum profiles, for small workpieces, for panels, for the aluminum industry, for aluminum plates, for cast iron, dental
- Other characteristics
- high-speed, high-performance, high-productivity, compact, tapping
- X travel
700 mm
(28 in)- Y travel
400 mm
(16 in)- Z travel
320 mm
(13 in)- Rotational speed
19,200 rpm, 24,000 rpm
(120,637 rad.min-1, 150,796 rad.min-1)- Power
15 kVA
(20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
250 kg
(551 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.007 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
3,500 kg
(7,716.18 lb)- Overall length
2,000 mm
(78.7 in)- Overall width
2,490 mm
(98 in)- Overall height
2,750 mm
(108.3 in)
Description
Features
1. Global pioneering drilling and tapping center integrated with both ultrasonic
machining systen and MQL system for green machining with no need for coolant
2. Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available
3. Various tool magazine capacity options: 21T/26T/30T/36T/30T+14T
4. Positioning accuracy of 5µm and repeatability accuracy of 3µm
5. Various distance options from Spindle Nose to Table: 200-560mm (standard), 270-630/340-700mm (optional)
6. 4-/5-axis Rotary Table available
Application:
Ideally suited for drilling, tapping and milling small plates, discs and housings for consumable electronics, automotive, aerospace, medical industry, etc.
