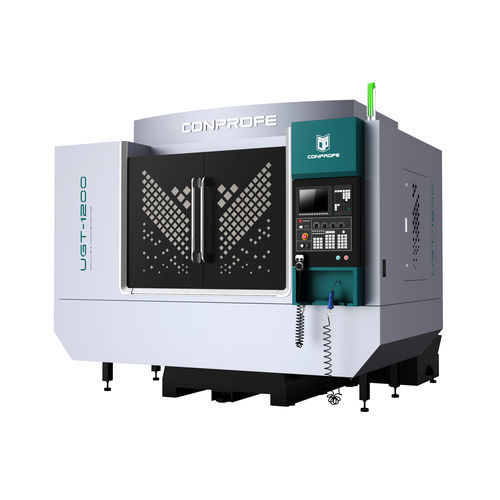

3-axis CNC machining center UGT-1200verticalfor compositesfor glass
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for glass, for ceramics, quartz, for hard and brittle materials
- Spindle mount
- BT 30
- Number of tool stations
- 21 tools
- Applications
- for the aluminum industry, drilling, medical, for the steel industry, for titanium, for drilling, for graphite machining, for aluminum plates, for small workpieces, for vehicles, for small parts production, for aluminum profiles, for panels, optical, for cast iron, dental, deep hole
- Other characteristics
- high-speed, high-performance, high-productivity, tapping
- X travel
1,200 mm
(47 in)- Y travel
650 mm
(26 in)- Z travel
370 mm
(15 in)- Rotational speed
19,200 rpm, 24,000 rpm
(120,637 rad.min-1, 150,796 rad.min-1)- Power
15 kVA
(20.39 hp)- Workpiece max height
370 mm
(15 in)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
400 kg
(882 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.007 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
6,000 kg
(13,227.74 lb)- Overall length
2,930 mm
(115.4 in)- Overall width
2,980 mm
(117.3 in)- Overall height
2,700 mm
(106.3 in)
Description
Features
1. Global pioneering drilling and tapping center integrated with both ultrasonic
machining systen and MQL system for green machining with no need for coolant
2. Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available
3. Various tool magazine capacity options: 21T/26T/30T/36T/30T+14T
4. Positioning accuracy of 5µm and repeatability accuracy of 3µm
5. Various distance options from Spindle Nose to Table: 200-560mm (standard), 270-630/340-700mm (optional)
6. 4-/5-axis Rotary Table available
Application:
Ideally suited for drilling, tapping and milling small plates, discs and housings for consumable electronics, automotive, aerospace, medical industry, etc.
