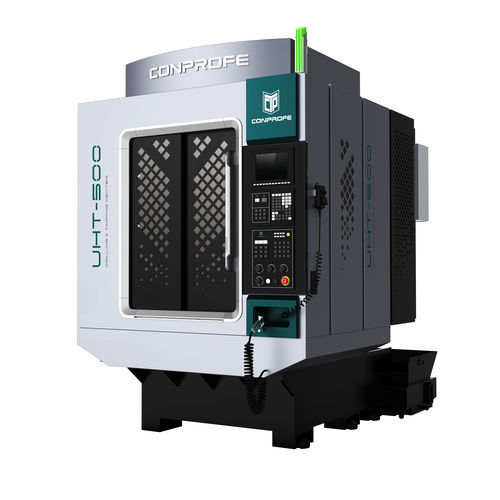

3-axis CNC machining center UHT-500verticalfor compositesfor glass
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for glass, for ceramics, quartz, for hard and brittle materials
- Spindle mount
- BT 30
- Number of tool stations
- 21 tools
- Applications
- drilling, for medical applications, for titanium, for small parts production, for aluminum profiles, for the aluminum industry, for cast iron, dental, for the steel industry, for small workpieces, for aluminum plates
- Other characteristics
- high-speed, high-performance, milling, high-productivity, tapping
- X travel
500 mm
(20 in)- Y travel
400 mm
(16 in)- Z travel
320 mm
(13 in)- Rotational speed
24,000 rpm, 30,000 rpm
(150,796 rad.min-1, 188,496 rad.min-1)- Power
15 kW
(20.39 hp)- Workpiece max height
320 mm
(13 in)- Work feed X-axis
48 mm/s
- Work feed Y-axis
48 mm/s
- Work feed Z-axis
36 mm/s
- Table load capacity
250 kg
(551 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.006 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
3,200 kg
(7,054.79 lb)- Overall length
1,600 mm
(63 in)- Overall width
2,430 mm
(95.7 in)- Overall height
2,400 mm
(94.5 in)
Description
Features
1. Global pioneering drilling and tapping center integrated with both ultrasonic
machining systen and MQL system for green machining with no need for coolant
2. Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available
3. Various tool magazine capacity options: 21T/26T/30T/36T/30T+14T
4. Positioning accuracy of 5µm and repeatability accuracy of 3µm
5. Various distance options from Spindle Nose to Table: 200-560mm (standard), 270-630/340-700mm (optional)
6. 4-/5-axis Rotary Table available
Application:
Ideally suited for drilling, tapping and milling small plates, discs and housings for consumable electronics, automotive, aerospace, medical industry, etc.
