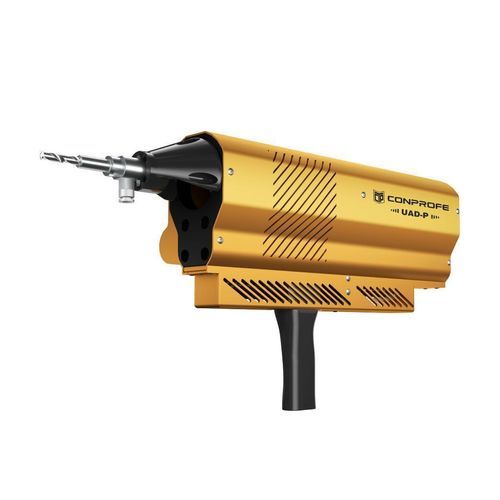

Pneumatic drill UAD

Product Overview

• 3-in-1 ultrasonic pneumatic drill integrating Ultrasonic, MQL and cryogenic air-blasting technologies
• Self-feed with adjustable feed rate
• Reduced tool wear and extended tool life
• Fast tool change to minimize downtime
• Ultrasonic-assisted cutting to lower cutting forces
• Adjustable travel for different material thicknesses
• Modular design for simplified maintenance and cost savings

Compatible Tools
Simplifies drilling operations by combining drilling, boring and reaming functions. Uses fine-grain tool materials from global suppliers for high strength and wear resistance. Left-hand flute geometry enables smooth chip evacuation, reduces surface roughness and improves hole-wall quality. Well suited to high-efficiency, high-quality drilling of CFRP composites.

Additional Compatible Tool Features
Step-drill and four-flute variants further simplify processes and improve efficiency. Fine-grain materials provide high intensity and wear resistance. Four-flute geometry enhances precision and stability for rough machining of CFRP and for efficient drilling of aluminium alloys, titanium alloys and laminated materials.

Application Cases
Designed for hole drilling in carbon-fiber composites, carbon–aluminium and carbon–titanium laminates, aluminium–titanium laminates, carbon–aluminium–titanium laminates and other advanced materials.

Technical Parameters
Item — UAD-PA — Unit
Ultrasonic Power — 750 — W
Model — UAD-PA04 | UAD-PA16 | UAD-PA35 | UAD-PA45 — -
Idle Speed — 400 | 1,600 | 3,500 | 4,500 — rpm
Drilling Diameter — 6-12.7 — mm
Feed Rate — 0.005-0.2 (adjustable) — mm/rev
Max. Ultrasonic Amplitude — 12 — μm
Ultrasonic Frequency — 15-50 — kHz
Max. Ultrasonic Power — 120 — W

Technical specifications

• Series: UAD Series (UAD-PA family)
• Ultrasonic Power: 750 W
• Available Models: UAD-PA04, UAD-PA16, UAD-PA35, UAD-PA45
• Idle Speed (by model): 400 / 1,600 / 3,500 / 4,500 rpm
• Drilling Diameter: 6 - 12.7 mm
• Feed Rate: 0.005 - 0.2 mm/rev (adjustable)
• Max. Ultrasonic Amplitude: 12 μm
• Ultrasonic Frequency: 15 - 50 kHz
• Max. Ultrasonic Power (assist): 120 W
