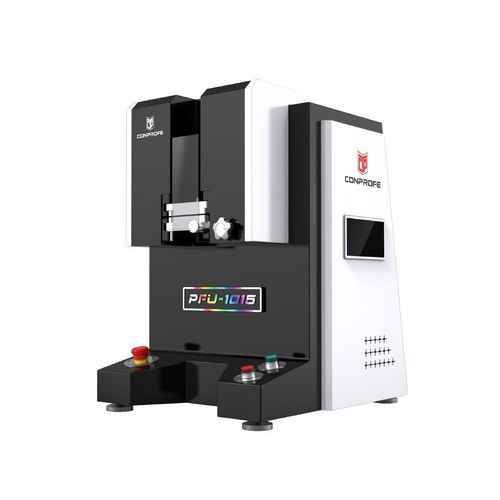

Hydraulic press PFU-1015

table typeautomaticdigital

Overview

• High accuracy: clamping accuracy ≤2 µm for consistent precision in press-fit tool holder operations
• Compact table-type design: small footprint for integration into workshop or production cells
• Multiple operation modes: continuous dismounting, continuous clamping, and cyclic dismounting/clamping; interchangeable module supports various tool-holder specifications
• Easy operation: simplified buttons, touch-screen interface and plug-and-play 220 V hydraulic system
• Durable controls and finishes: fade-resistant etching on frequent-contact positions and high-quality button components

Application Cases
Suitable for clamping and dismounting of precision press-fit tool holders in toolrooms, machining cells and production lines

Technical Parameters (table)
Item | PFU-1015 | Unit
Dimensions | 510x575x700 | mm
Max. Travel | 20 | mm
Voltage | 220 | V
Motor Power | 0.75 | kW
Motor Speed | 1,400 | rpm
Working Noise | 60 | dB
Locking Mode | Knob Type | -
Net Weight | 125 | kg
Disassembling & Assembling Time | 7 | s
Tool Clamping Accuracy | ≤2 | µm
Operation Mode | Touch / Button | -
Oil Tank Capacity | 1.5 | L
Max. Hydraulic Pressure | 20 | MPa
No. of Drive Cylinders | 2 | pcs
Working Flow | 1.88 | L.min

Features / Technical specifications

• Model: PFU-1015
• Dimensions: 510x575x700 mm
• Max. travel: 20 mm
• Voltage: 220 V
• Motor power: 0.75 kW
• Motor speed: 1,400 rpm
• Working noise: 60 dB
• Locking mode: knob type
• Net weight: 125 kg
• Disassembling & assembling time: 7 s
• Tool clamping accuracy: ≤2 µm
• Operation mode: touch / button
• Oil tank capacity: 1.5 L
• Max. hydraulic pressure: 20 MPa
• No. of drive cylinders: 2 pcs
• Working flow: 1.88 L.min
