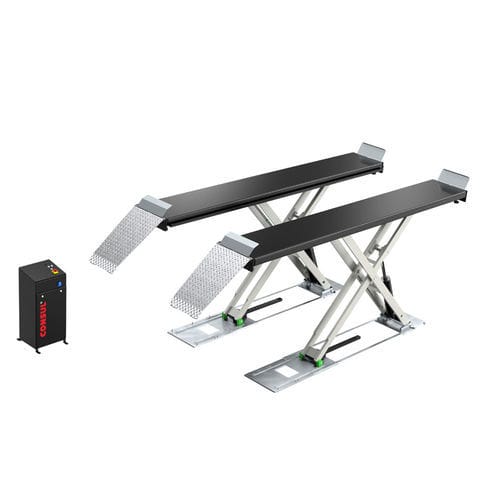

Scissors car lift 0.35 S BA
3.5 tonelectro-hydraulicfor car

Scissors car lift - 0.35 S BA - Consul Werkstattausrüstung GmbH - 3.5 ton / electro-hydraulic / for car
Scissors car lift - 0.35 S BA - Consul Werkstattausrüstung GmbH - 3.5 ton / electro-hydraulic / for car
Scissors car lift - 0.35 S BA - Consul Werkstattausrüstung GmbH - 3.5 ton / electro-hydraulic / for car - image - 2
Scissors car lift - 0.35 S BA - Consul Werkstattausrüstung GmbH - 3.5 ton / electro-hydraulic / for car - image - 3
Add to favorites
Compare this product

Characteristics

Type
scissors
Maximum load
3.5 ton
Operation
electro-hydraulic
Applications
for car
Voltage
400 V
Lifting height

Max.: 2,100 mm
(82.677 in)

Min.: 210 mm
(8.268 in)

Lifting time

35 s

Motor power

5.5 kW
(7.48 hp)

Description

Platforms made of special rolled profile steel Master/Slave hydraulic system On-floor installation (BA) Pneumatic unlocking via push button when lowering Seperated lockable main switch (as required by CE) Acoustic foot protection Mechanical locking device 17-ary Divided 20 mm strong fixed and floating bearing (serially hot-dip galv.), calibration for wheel alignment optional Platform with drive-on ramps and roll back protection Integrated rail for jacking beam Protection class IP 54, 230 V socket, GS-approved,DIN EN 1493, CE-approved
