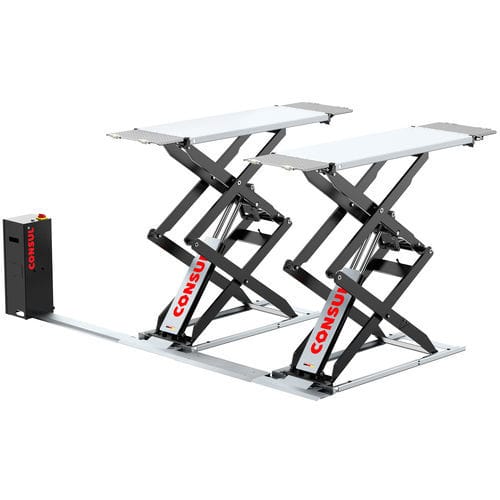

Double-scissor post lift 0.35 SDE3.5 tonelectro-hydraulic400 V
Add to favorites
Compare this product
Characteristics
- Type
- double-scissor
- Maximum load
- 3.5 ton
- Operation
- electro-hydraulic
- Voltage
- 400 V
- Applications
- for car
- Lifting height
Min.: 105 mm
(4.134 in)Max.: 2,000 mm
(78.74 in)- Lifting time
45 s
- Motor power
2.2 kW
(2.99 hp)
Description
Reliable and ultra flat double scissor lift (driven by electric power only) for above ground and recessed installation. Applicable as maintenance and repair lift.
Design features:
Platforms made from slip-resistant bulp plate
Dual hydraulic system - double cylinder in every scissor, no air supply necessary
Safety signal tone during lowering in foot area
Dead-man control
With emergency lowering device and overload protection
Track adjustable in length with flap mechanism, can be operated from the side
Hydraulically synchronization of tracks with cylinder follow-up principle
No mechanical linkage between the tracks
All hinge points are equipped with lubricating bolts
Base frame hot-dip galvanized and galvanized drive-on ramps
Incl. 4 elastomer adapters 40 mm
Inground installation possible without additional accessories
Protection class IP54, GS-approved, DIN EN 1493, CE-approved
