Automatic filling machine FDS4500

containerfor tubespail

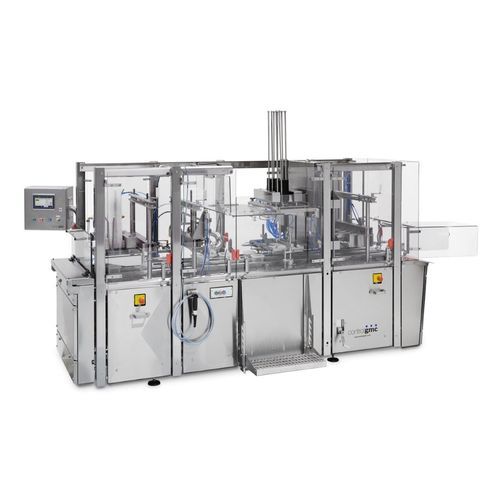

The FDS4500 is an automatic dual-lane filling machine made with one motorized indexing conveyor having two lanes that dispenses automatically two by two empty tubs, trays or buckets, bring them to the filling station(s), activates the optional double plastic film sealing module model PL500D, bring the containers two by two under the lids (or over-caps) denesting & lids (or over-caps) depositor unit, and then under the closing unit. This dual-lane filling line can manage either liquid and semi-liquid products, or dry, viscous or sticky products, and is made for round, square or rectangular open mouth containers, with or without a tamper evidency button. • High speed • True two by two lids & containers escapement system • Trustworthy double air removing closing head • All metal parts in stainless steel => long lasting, fully washable • Control GMC – HMI: a user-friendly touch-screen machine/operator interface, with status, set up, a maintenance screen, and production statistics • Control GMC – Safety operation & easy maintenance: this machine automatically stops the filler if no container has arrived or stops itself if the lid denester head is jammed. Easily accessible mechanical parts, simple open design. On-screen error detection and diagnosis. In-house programming & support. NEMA 4X wash down fibreglass control box, with temperature control when use in cold environment • Control GMC – Flexibility: simple & quick container size changeover, with an adjustable cleats conveyor, a preset lid & container denester head, and full height adjustable components
