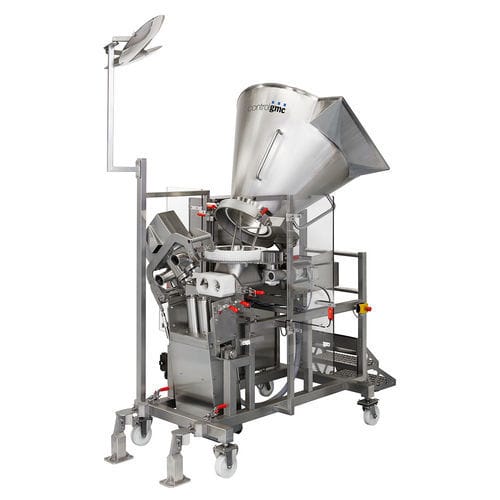

Pasta depositor DVP1000D

volumetricfor the food industrymobile

The DVP1000D is a screw fed double volumetric piston filler for raw vegetables (cabbage, carrot…), legumes, grains and pasta based prepared salads. It is specifically designed for specialty prepared salads manufacturers. In particular, it respects the integrity of products and chunks are neither cut nor smashed. It fills both hot and cold products. This machine enables food processors to easily and precisely fill those difficult products into various containers. The concept of this Dual Volumetric Piston Filler is to use two feeding screws located at the bottom of the hopper to push the product into expanding cavities of two dosing chambers with pistons. Once the cavities have expanded to the selected volume, two directional valves turn to redirect the product being pushed by the pistons towards dispensing valves located over the containers. The dispensing valve will cut any food string leftovers along the way to prevent jams and allow clean fill cycles. COMPONENTS 1 Sanitary welded frame structure on casters 1 Large hopper with programmable scraper arm 2 Servomotor driven dosing chambers’ feeding screws 2 Dosing chambers powered by a servomotor 2 Inlet valves 2 Horizontal dispensing valves
