Gravity filler DT1000

bucketfor tubesfor liquids

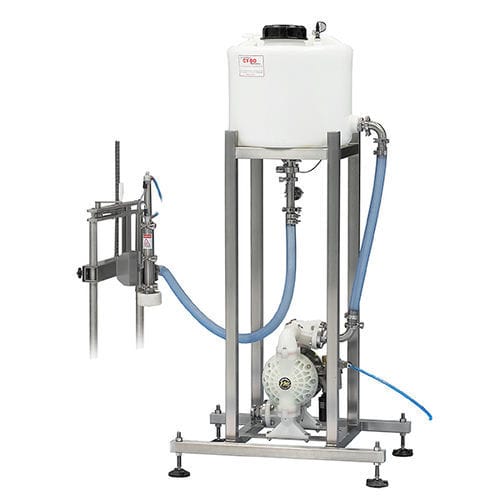

The DT1000 is a gravity filler for liquids that keeps a buffer-tank at constant level through a pump, thus allowing the filling of the liquid by time. The dispensing valve is pneumatically actuated, and coupled to the level control of the buffer-tank; the filling will automatically stop, if the level is too low. This is the best solution for liquids when a high accuracy is not required. For instance, this gravity filler is an excellent brine filler or water filler. Simple and low investment cost Ideal for the filling of liquid where low accuracy is required PLC controlled Control GMC – HMI: a user-friendly touch-screen machine/operator interface, with status, set up, a maintenance screen, and production statistics Control GMC – Easy maintenance: easily accessible mechanical parts, simple open design. In-house programming & support Range: 4 oz to 5 USGAL Maximum speed per minute, up to: 70 for 1 lbs tubs, and 40 for 5 lbs buckets Footprint, approx (L x W) : 40″ x 30″
