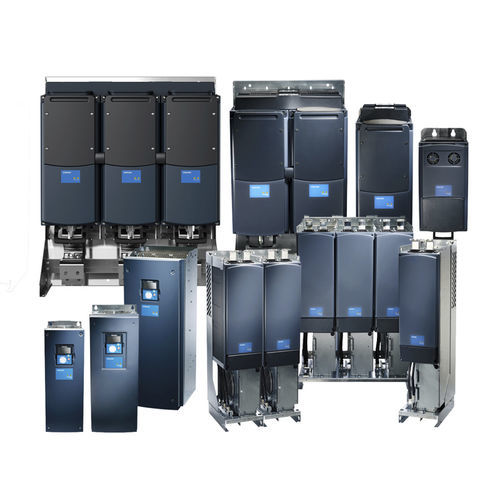

Cabinet variable frequency drive Vacon NXP series
direct mountingwall-mountedfor hoists

Cabinet variable frequency drive - Vacon NXP series - Convertwell Oy Ab - direct mounting / wall-mounted / for hoists
Cabinet variable frequency drive - Vacon NXP series - Convertwell Oy Ab - direct mounting / wall-mounted / for hoists
Cabinet variable frequency drive - Vacon NXP series - Convertwell Oy Ab - direct mounting / wall-mounted / for hoists - image - 2
Add to favorites
Compare this product
Go to the Convertwell Oy Ab website for more information

Characteristics

Mounting
cabinet, direct mounting, wall-mounted
Applications
for hoists, for packaging, for the cement industry, for motors, for automation, for air conditioning, fan, for conveyor, for compressors, for pump, HVAC, industrial, cabinet, for industrial applications, for marine application
Protection class
IP20, IP54
Other characteristics
compact, air-cooled, open-loop, Ethernet, Modbus, CANopen, PROFIBUS
Power

Min.: 0.55 kW

Max.: 400 kW

Intensity

Min.: 3.7 A

Max.: 590 A

Description

Control Performance: - Open loop vector control (5-150% of base speed) Ramp times (acceleration and deceleration): 0 ÷ 3000 s Frame: - FR4 ÷ FR10 Overload: - 110% / 150% Voltage: - 208 ÷ 240VAC / 380 ÷ 500VAC / 525 ÷ 690VAC Input: - 2 x AI 6 x DI 10V, ref. 24V in Output: - 1 x AO 1 x DO 2 x RO + TI Other Basic I/O Modules: - Encoder TTL (2 x DI), HTL (2 x DI), double HTL Encoder HTL type (divider + direction) Sin/Cos encoder interface Communication Modules (Optional): - RS 485, ModBus, Profinet, Ethernet/IP, Profibus DP, Devicenet, CANopen.. Output Frequency: - 0 ÷ 320Hz Braking: - DC brake: 30% of TN (without brake resistor), flux braking Emissions: - EMC class C, H, L, T Approvals: - SIL2, 94/9/EC, CE 0537 Ex 11 (2) GD (thermistor), Marine
