Variable-speed drive with analog interface VACON 100X
3-phasedigital outputNEMA 4X

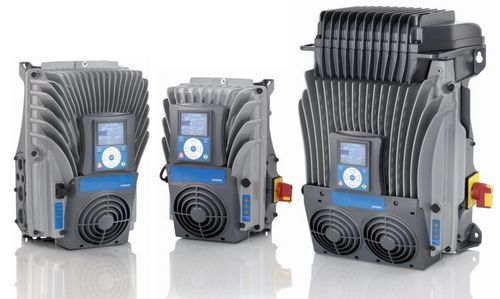

Variable-speed drive with analog interface - VACON 100X - Convertwell Oy Ab - 3-phase / digital output / NEMA 4X
Variable-speed drive with analog interface - VACON 100X - Convertwell Oy Ab - 3-phase / digital output / NEMA 4X
Add to favorites
Compare this product
Go to the Convertwell Oy Ab website for more information

Characteristics

Type
with analog interface, 3-phase, digital output
Protection class
NEMA 4X, IP66
Other characteristics
Modbus, Ethernet, integrated braking resistor, safe torque off (STO), variable-frequency
Power

Min.: 1.1 kW
(1.5 hp)

Max.: 37 kW
(50.31 hp)

Intensity

Min.: 3.4 A

Max.: 72 A

Output frequency

Min.: 0 Hz

Max.: 320 Hz

Description

Overview
Compact IP66 / Type 4X variable frequency AC drive for controlling pumps, fans, conveyors, industrial machinery and solar power applications.

Key specifications
  • Frames: MM4–MM6
  • Power range: 1.1–37 kW
  • Voltage ranges: 208–230 V, 380–480 V, 380–500 V
  • Current range: 3.4–72 A (model dependent)
  • Overload capacity: 150% for 1 min
  • Output frequency: 0–320 Hz
  • Ambient temperature: -10–60 °C
  • Protection: IP66 / Type 4X (outdoor)
  • EMC emissions: C2


Inputs and outputs
  • AI1, AI2: voltage or current inputs
  • DI1–DI6 digital inputs
  • 1 × PTC thermistor input, 24 V input
  • 1 × analog output, 2 × digital outputs (open collector), 2 × relay outputs
  • +24 V out and +10 V reference


Safety and communication
  • Integrated brake chopper
  • Safe Torque OFF (STO): SIL3 according to EN61800-3
  • STO feedback available
  • Communications: Modbus and Ethernet (standard)


Available models (examples)
  • 208–230 V series: VACON0100-3L-0006-2-X to VACON0100-3L-0062-2-X — 1.1–15 kW
  • 380–480 V series: VACON0100-3L-0003-4-X to VACON0100-3L-0072-4-X — 1.1–37 kW
  • 380–500 V series: VACON0100-3L-0003-5-X to VACON0100-3L-0072-5-X — 1.1–37 kW


Compliance and approvals
  • SIL3 safety rating
  • IP66 / Type 4X outdoor rating
  • EMC level C2


Ordering and support
  • Multiple frame sizes and voltage versions available; contact supplier for detailed datasheet and configuration support
  • Spare parts and service options depend on selected model
