Density meter TS-0990

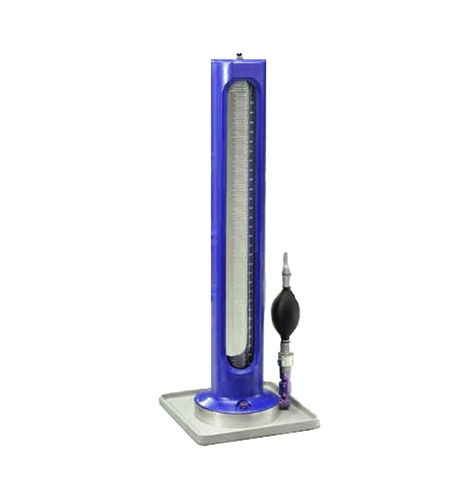

TS-0990 and TS-0992 Balloon Density Apparatus are used for the on-site determination of the density of well bonded soil according to the ASTM and French standards respectively. TS-0990 consists of a graduated cylinder of 1596 ml capacity housed inside an aluminium guard, a reversible rubber aspirator pump, a density plate 9 inches square, and 12 rubber balloons. The principle of operation is similar to the sand replacement but the hole is filled by a rubber balloon where water is pumped. The amount of water can be easily determined by the graduation of the cylinder. The capacity of TS-0992 apparatus is 3000 ml. A metal cylinder is filled with water which is then pumped into a rubber membrane mounted on the base of the cylinder. The water pressure is controlled by a pressure gauge and the volume of the balloon is measured on the graduated piston stem.
