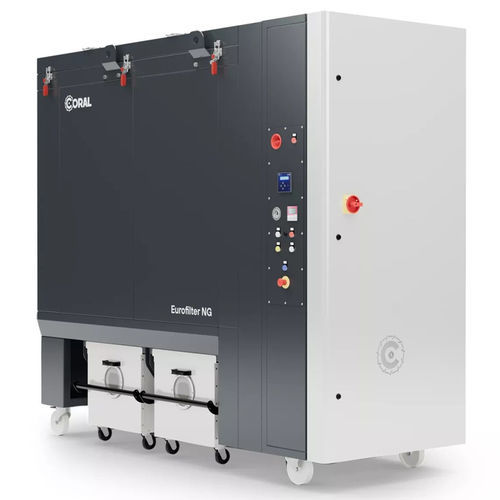

Bag dust collector Eurofilter NG EU EN 16770 series
mechanical shaker cleaningself-cleaninghigh-efficiency

Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency - image - 2
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency - image - 3
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency - image - 4
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency - image - 5
Bag dust collector - Eurofilter NG EU EN 16770 series - CORAL - mechanical shaker cleaning / self-cleaning / high-efficiency - image - 6
Add to favorites
Compare this product
Go to the CORAL website for more information

Characteristics

Technology
bag
Backflushing
mechanical shaker cleaning
Other characteristics
mobile, automatic, self-cleaning, high-efficiency, for wood dust, top-emptying, with integrated extinguisher
Output

Min.: 0 m³/h
(0 ft³/h)

Max.: 8,000 m³/h
(282,517.3338 ft³/h)

Description

Eurofilter NG EU EN 16770 is a wheeled filter for suction of various dusts and wood chips, explosives class st1 ( Kst < 200bar-m/s ). Consisting of a panel structure made of galvanized or painted sheet metal, there is a bag filter stage inside, with the possibility of having automatic mechanical cleaning by motovibrator (M) or pneumatic compressed air (P) and continuous discharge of chips and dust. Standard fire extinguisher Discharge of chips and dust into easy-to-manage containers Remarkable maneuverability despite its size, thanks to large-diameter wheels Maximum filtration efficiency Integrated high-efficiency and soundproof fan Automatic cleaning system "Plug & Play", no assembly required

Catalogs

No catalogs are available for this product.

See all of CORAL‘s catalogs
Go to the CORAL website for more information
