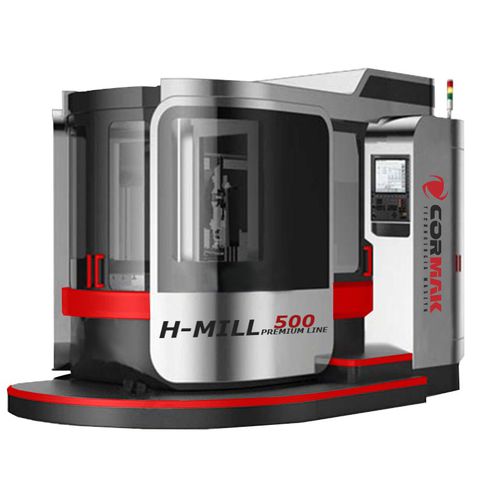

3-axis CNC machining center H-MILL500

horizontalhigh-precision

Machining centres equipped with horizontal spindle axis provide precise and quick machining of various elements both in the automated series production and in the constant production of metal pieces and parts of devices. Machines from the PREMIUM LINE series were created in order to fulfill the requirements of the most demanding users. The high quality and reliability of components ensure higher precision and efficiency of machining with the usage of multiple tools. Machining centres are built with parts from the best Taiwanese, German, Japanese and Chinese manufacturers, such as HIWIN, POSA, SIEMENS, FANUC, OMRON, PRAGATTI, SHNAIDER, CHANDOX, FAG, BOSCH REXROTH. Technical data Table dimensions 500×500 mm Table load capacity 600 kg X/Y/Z quick feed 32 m/min Spindle taper BT50 Tools magazine 24 Maximum weight of tools 15 kg Positioning accuracy ±0.005 mm JIS Available equipment • SIEMENS 808D • SIEMENS servomotors • 8000 RPM spindle • Linear guides • 24-tools magazine • 3-colour alarm indicators • Lighting • Hermetic body of the machine • Automatic lubrication system • CHANDOX, FAG, BOSCH REXROTH pneumatic system Optional equipment • SIEMENS 828 / Heidenhain / Fanuc control systems • Cooling via spindle 20 bar / 40 bar • 4th axis • Belt shavings ejector + container • Oil separator • Automatic door • Automatic tool setting probe • Optical transmission probe
