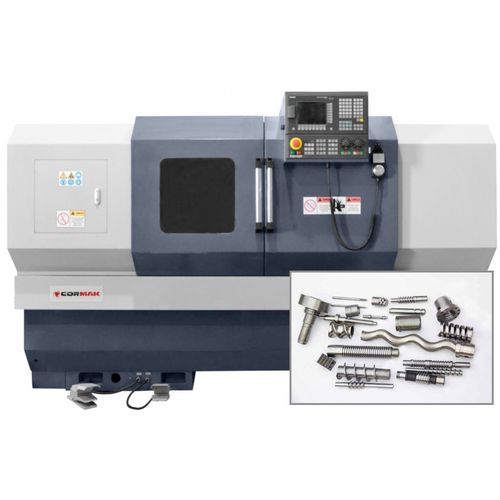

CNC lathe horizontalspindlemilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Other characteristics
- milling, spindle
- Spindle speed
Max.: 1,000 rpm
(6,283.185 rad.min-1)Min.: 7.5 rpm
(47.124 rad.min-1)- Bar capacity
11 mm
(0 in)- Overall lenght
3,100 mm
(122 in)- Overall width
1,520 mm
(60 in)- Overall height
1,850 mm
(73 in)- Weight
3,500 kg
(7,716 lb)
Description
Industrial CNC lathe, synchronized with the head for milling of various types of threads (including trapezoidal and ball threads).
Technical parameters
Swing over bed
630 mm
Maximum length of element
1000 mm
Spindle taper
C11
Spindle bore
100 mm
Maximum tailstock feed
250mm
Tailstock diameter
100 mm
Tailstock taper
MT5
Main motor power
11 kW
Milling motor power -
5.0 kW
Milling diameter
⌀ 2-150 mm
Tool speed
1200 rpm
Maximum spiral angle
25°
Catalogs
No catalogs are available for this product.
See all of Cormak‘s catalogs
