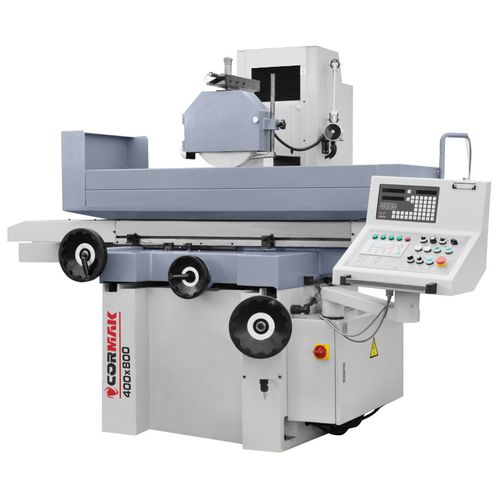

Surface grinding machine

for metal sheetsverticaldigital

Grinding machine for continuous operation in production. Broad grinding range and programmable PLC SIEMENS controller. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Automatic feeds for 3 axes. By default comes with a digital display. Machine features • Automatic feeds for 3 axes • Digital display • Sturdy structure • Very high accuracy Technical data Magnetic table size 400×800 Table load capacity 500 kg Grinding wheel dimensions 350×40×127 mm Maximum distance from spindle axis to table 580 mm Table hydraulic travel speed 7–23 m/min Maximum longitudinal table travel 910 mm Maximum transverse table travel 450 mm Automatic transverse feed 0.1–8 mm Rapid transverse feed 990 mm/min Y-axis scale gradation 0.02 mm Z-axis scale gradation 0.005 mm Rapid vertical feed 460 mm/min Automatic vertical feed 0.005–0.05 mm Spindle motor power 5.5 kW Base dimensions 3600×2400 mm Machine height 1900 mm Weight 3800 kg
