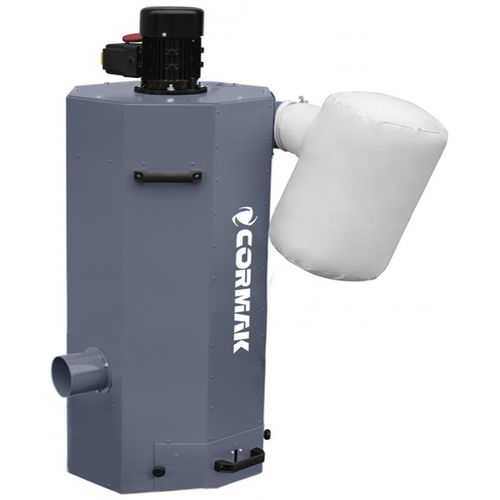

Industrial dust extractor MDC750

chipelectric

A machine designed for aluminium and steel chips (not aluminium dust) as well as grinding dust collection from machines, along with cleaning workstations. A side turbine makes the collector perfect for connection to machines that produce large number of chips. Also equipped with a dust filter and a tank (a drawer) for by-product removal. Machine features • Quick and easy filter replacement • Large container for waste with easy access • Compact and stable body • High efficiency Technical data Motor power 0.75 kW Voltage 400V/50Hz Intake connectors 2×100 mm Suction efficiency without a bag 1800 m³/h Suction efficiency with a bag 1520 m³/h Rotor diameter 350 mm Dimensions 870×560×1170 mm Weight 31 kg
