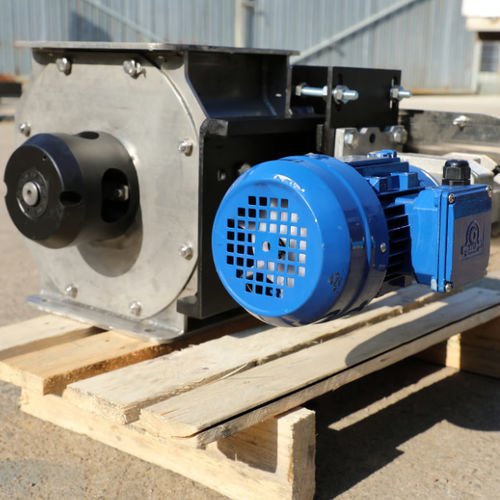

Pneumatic conveying rotary valve VS series

for foodfor plasticsfor pharmaceutical applications

"VS" Drop-Through Rotary Valve The "VS" rotary valve is a component specifically designed for the continuous discharge of various types of powders, shavings, wood chips, industrial waste, and recycled materials, including large-sized particles. It is suitable for installation under silos, hoppers, pneumatic conveying systems, filters, and cyclones. Materials coming from a filter hopper or screw conveyor fall into the inlet mouth of the valve, are conveyed by the rotor, and subsequently discharged from the bottom outlet. Key Strengths The rotary valve is designed with maximum application versatility in mind. The rotating internal rotor allows continuous discharge between environments with different pressure levels. It features a compact and robust construction, and offers quick and easy access to internal mechanical parts for maintenance. Standard Equipment Body, flanges, and rotor in carbon steel Gearmotor included Available Options Body, flanges, and rotor in AISI stainless steel Spring steel blades Vulkolan blades Chromed body ATEX-certified version available Available Transmission Types Direct drive with reaction arm Chain drive with sprockets, gearmotor positioned either above or below, depending on customer requirements
