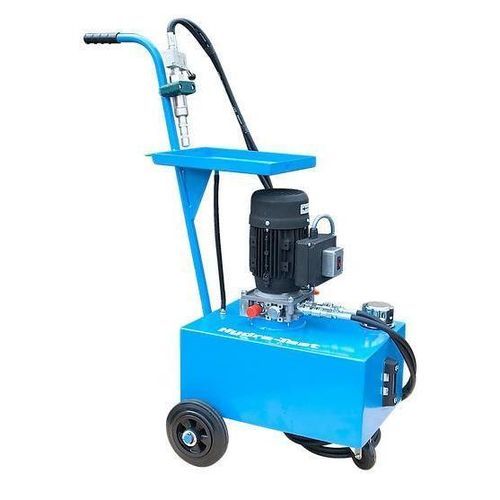

Flow leak tester HT-2000

leakagefor automotive applications

Overview
The portable Hydra-Test HT-2000 unit enables automatic transmission rebuild specialists to verify the hydraulic integrity of individual gearbox components on a bench test rig without vehicle installation.

Functionality
With a simple connection the system diagnoses clutch and band operation and reproduces hydraulic conditions of the transmission for targeted inspection. Bench testing reduces time spent on unnecessary removal and refitting of the gearbox.

Leak identification method
A dedicated test plate is attached to the transmission interface. Using the integrated flow meter, the operator measures leakage at piston or servo seals and quantifies flow to determine a pass/fail condition.

Test plates
More than 80 dedicated test plates are available to match a wide range of transmission models; additional plates are under development to expand compatibility.

Brochure and media
Product brochure (PDF) and product video are provided for download and viewing to assist specification and training.

Technical characteristics / specifications

• Manufacturer: Hydra-Test
• Model: HT-2000
• Type: Portable bench unit for testing automatic transmissions
• Purpose: Verify hydraulic integrity of individual gearbox components
• Diagnostics: Can evaluate clutch and band operation
• Method: Attach test plate and measure leakage with flow meter at piston or servo seals
• Outcome: Provides quantitative measurement and pass/fail indication
• Accessory support: Over 80 dedicated test plates available
• Supporting materials: Product brochure (PDF) and product video available
