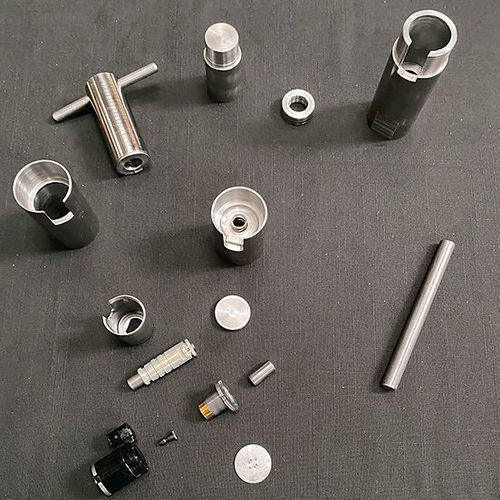

Installation tool set

opening

Overview
This page presents transmission tools and valve body toolkits for overhaul and repair of transmission solenoids and valve bodies, including specialised kits for Aisin Warner SL solenoids and Toyota/Lexus solenoids. The toolkits enable opening, cleaning, reconditioning and reclosing of solenoid canisters to restore them to service condition. Several kits include video instructions to guide correct procedure.

AISIN WARNER SL - Solenoid Cleaning Tool Kit
This kit supports complete overhaul of Aisin 5- and 6-speed SL solenoids. The primary fault addressed is dirt ingress; the kit is engineered to restore the canister and reclose the solenoid so it appears and functions as if never disassembled. The kit is supplied with step-by-step video instructions.

Applicable (Aisin large canister SL solenoids)

• Early models: AW55-50
• TF60 (09G, 09M, 09K)
• TR60 (09D)
• TF80 (AF40-6)

SOLENOID TOOL KIT for Toyota / Lexus
This toolkit enables repair and cleaning of Toyota/Lexus solenoids in both small and large canister formats. It is designed for rapid, repeatable disassembly, cleaning and reclosing, and is demonstrated in accompanying video materials. The kit covers a range of Toyota/Lexus transmission variants.

Applicable (Toyota / Lexus)

• U151E–U250E (2004–2012) — small and large canister SL solenoids
• A750E (2WD) / A750F (4WD) 2002–2007
• A761E (2WD) / A760H (4WD) 2004–2009

JF015E Solenoid Kit
JF015E is listed as a solenoid kit option on the page, with an image gallery showing kit components and typical usage scenarios for reference by technicians.

BUSHES (for AISIN Solenoids)
Some kits include a British-made precision spiral reamer in the starter set. A complete bushes kit option contains 12 bushes, the reamer and an installation tool; individual bushes are also available as replacement items. Used with the SL Solenoid Repair Tool, bushes and reamer enable remanufacture of Aisin solenoids fitted to multiple transmission models.

Videos and Instruction
Toolkits are supplied with video instruction that demonstrates the repair, cleaning and reassembly workflow for each kit variant (Aisin large canister, Aisin small canister, Toyota/Lexus). Videos guide tool selection, sequence of operations and correct reclosing technique.

Technical specifications

• Purpose: opening, cleaning, reconditioning and reclosing SL solenoid canisters
• Includes video instruction materials for correct procedure
• Compatibility: Aisin large canister kits — AW55-50, TF60 (09G/09M/09K), TR60 (09D), TF80 (AF40-6)
• Aisin small canister kits: later variants of AW55-50, TF60, TR60, TF80
• Toyota/Lexus kit: U151E–U250E (2004–2012) and A75x/A76x families (2002–2009)
• Bush starter kit: British-made precision spiral reamer; complete option with 12 bushes, reamer and installation tool
• Kit option: JF015E — gallery and component references provided
