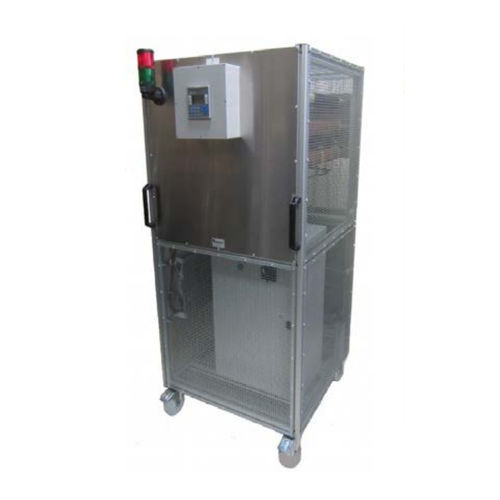

Resistive load bank ET1738

ACmobile

PLC controlled resistive load bank 63Amps / 500Amps intermittent with integrated autotransformer • adjustable voltage generated in the range 195 to 264 VAC • voltage variation by integrated autotransformer • adjustable permanent resistive load from 2,5 Amps to 63 Amps • adjustable temporaly resistive load from 20 Amps to 500 Amps • Unitronics V130 PLC with display and numeric keyboard • real time display of the voltage, current, order, duty cycle • natural air cooling (very low acoustic noise) • ground and power connections by copper bars • dimensions W802 x D910 x H1670 mm • weight 230kg • ingress protection IP20
