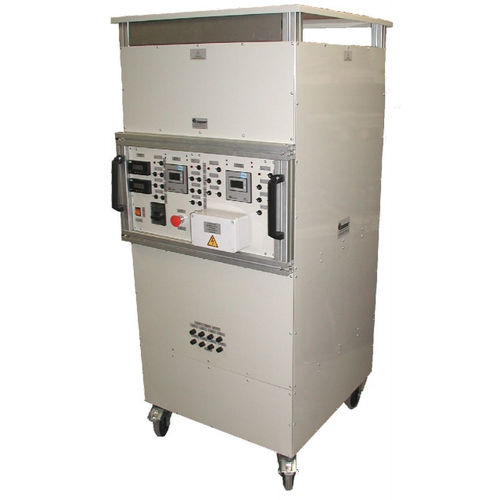

AC load bank ET1441

mobile3-phase

•voltage selection by rotary switch and validation pushbutton • load step selection by switches on the front panel with 1 Amp steps • display of current and voltage values by 2 digital wattmeters (AC), one digital voltmeter and one digital ammeter (DC) • emergency stop button • forced-air cooling : fans powered from external 230 V / 50 Hz single phase source • power connections by Ø6 mm plugs on the rear panel • 4mm meter test sockets on the front panel for voltage measurement by an external multimeter • portable, with 2 fixed wheels and 2 omni-directional braked wheels • dimensions: W703 x D850 x H1704 mm • weight 190 kg , ingress protection IP 2
