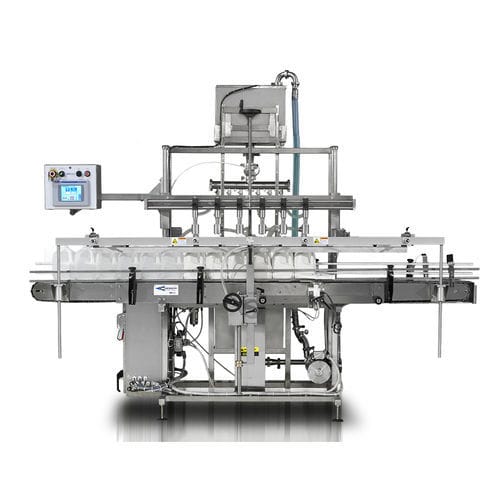

Automatic filling machine IFL

containerfor cosmetic productsliquids

IFL – Inline Fill-To-Level fills a diverse range of liquid products in a variety of container shapes and sizes, and it can be equipped with 2-12 nozzles. Models range from semi to fully automatic with speeds of 14-46 containers per minute and a fill accuracy of ± 1/16 inch. Suggested for use as either a lab model or as a small batch production line. The operator simply slides containers onto a stainless steel slide track to an adjustable stop point. The nozzles are now centered above the container openings. The operator lowers the spout bar, which brings the nozzles down into the containers and seals the openings. At this point, the filling cycle begins. When the operator sees product discharging from the overflow nozzle hose, the cycle is complete. The head is then raised and the container stop is manually released to discharge the containers. • Configured with 2 to 12 Filling Nozzles • 12 Gallon Stainless Steel Supply Tank • Programmable Logic Controller (IFLA) • Fully Automatic Operation (IFLA) • Type 316 Stainless Steel Wetted Contact Parts • Type 316 Stainless Steel Filling Nozzles • Fully Wired 220 Volt, 3 Phase, 60 Cycles • Accuracy to +\- 1/16 of 1 inch • Automatic Overflow (IFLA) • Pneumatic Operation of Fill Head • Left to Right Direction • PVC Flexible Tubing
