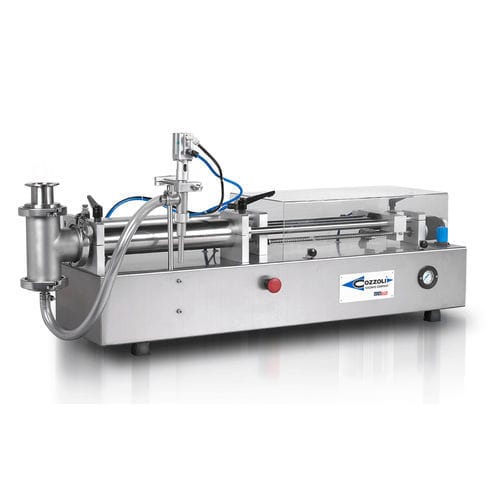

BMSV – Bench Model Piston Filler. This Single Valve filling machine has been designed specifically to provide accurate economical filling of viscous products for lab work and small scale filling operations. The Bench Model is ideal for filling food sauces, paints, syrups, honey, caulks, etc. The unit features fully pneumatic operation and provides accuracy of up to ± .05%, by volume dependent on products viscosity and flow characteristics.
FILLING PRINCIPLE
The amount of product dispensed is controlled by the lengthof the piston stroke. Once the stroke length is set, each cyclewill discharge the same amount of product into each container.On the intake stroke, the piston draws the product from thesupply tank or hopper, through the inlet check valve and intothe product cylinder. On the discharge stroke, the productflows from the product cylinder through the outlet checkvalve, and into the product container.
• 316L stainless steel straight down nozzle
• 304 stainless steel frame
• Easily disassembled for cleanup
• Emergency stop control
• Easy to operate
• Precision adjustment and volume adjustment capability
• Pneumatic components appropriate for explosion proof processes
• Speed is adjustable during operation
• Foot pedal operation for greater operator flexibility
• Fill volume adjustment counter for repeatability
• Dimensions: 50L x 19.5W x 22H
