Wireless door opening detector UniLock

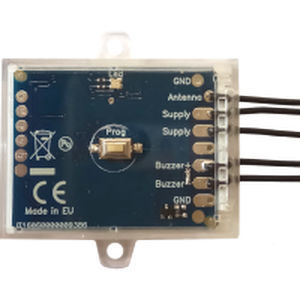

Wireless door opening detector - UniLock - Creasol
Wireless door opening detector - UniLock - Creasol
Add to favorites
Compare this product

Characteristics

Options
wireless

Description

Overview
  • Compact receiver module to open pedestrian or main doors equipped with solenoid/electric locks using most radio remotes transmitting between 220 MHz and 868 MHz (OOK/FSK, fixed and rolling codes).


Key capabilities
  • Operates without external power or battery by using the small current from the existing pushbutton circuit inside the door control box.
  • User-selectable receiving frequency (multiple frequencies supported; some restricted in certain regions).
  • Supports OOK (AM) and FSK (FM) modulations (FM deviations 12.5 or 25 kHz).
  • Twin-frequency operation: can receive on one or two frequencies/modulations simultaneously.
  • Can learn up to 60 remote controls (fixed and rolling codes), managing different remote types concurrently.
  • Configurable output pulses: 1–4 pulses and pulse durations of 100, 200, 400 or 600 ms.


How it works
  • When a learned remote transmits a known code, UniLock internally connects the two supply wires in parallel (simulating a pushbutton) so the electric lock receives current and the door opens.
  • One wire is the antenna (must remain unconnected); the other two wires (Supply) connect in parallel to the existing pushbutton.


Advantages
  • Fits inside the wall box of the existing pushbutton; installation requires only connecting the two supply wires in parallel to the pushbutton.
  • No external power required for standard electric-lock integrations.
  • Wide compatibility with many remote brands and code types due to selectable frequency, modulation and advanced decoding.
  • Adjustable receiver sensitivity (attenuation) to limit unwanted distant activations.
  • Supports learning of master remotes that can remotely enable learning for additional devices (master remotes do not trigger the door output).


Application examples
  • Open a garage or gate using a button on an existing remote control.
  • Integrate a separate receiver with UniLock when a gate uses a different frequency or coding.
  • Install UniLock at a pedestrian door pushbutton to enable remote opening.
  • Install UniLock in the wall box of an entrance main door pushbutton.


Installing instructions (summary)
  • Check voltage on the existing switch: 9–24 Vdc or 9–18 Vac.
  • Measure current through the existing switch: 0.8–3.2 A.
  • Connect the two wires marked Supply in parallel to the existing switch (third wire = antenna, leave unconnected).
  • Use the Prog button sequences to select frequency, modulation, number of pulses and pulse duration.


Learning remote controls (summary)
  • Press Prog twice to enter learning mode; within 10 s press the remote button to learn. Each learned code reloads the 10 s window.
  • LED feedback: 2 flashes = learned; 3 flashes = already present; 6 flashes = memory full.
  • Master remote learning: press Prog 4 times, then use the master remote to enable a 10 s learning window remotely (master remotes do not activate the output).


Removing remote controls
  • To remove a single remote press Prog 3 times, then transmit from the remote within 10 s (LED confirms result).
  • To clear all memory: press Prog 10 times (LED 10 flashes) then press Prog 3 times again.


Documentation
  • Product manual in PDF.
  • Application notes in PDF with examples and wiring schematics.


Compatibility / notes
  • Supports a wide list of remotes and manufacturers (fixed and rolling codes). A manufacturer compatibility table is provided. Reliable operation requires stable transmitter frequency; unstable transmitters may not be recognized.


Technical specifications
  • Dimensions: 41 x 31 x 11 mm.
  • Electric lock supply supported: 9 ÷ 18 Vac OR 9 ÷ 24 Vdc.
  • Electric lock current range: 0.8 A to 3.2 A maximum.
  • Device supply draws a small current (≈20 mA) through the existing switch when connected.
  • Memory: up to 60 remote controls (fixed and rolling codes).
  • Configurable pulses: 1, 2, 3, 4; pulse durations: 100 ms, 200 ms, 400 ms, 600 ms.
  • Twin frequency: selectable second frequency/modulation (two frequencies can be received simultaneously).
  • Supported modulations: OOK (AM) and FSK (FM) with 12.5 kHz and 25 kHz FM deviations.
  • Selectable frequencies (examples): 433.42 MHz, 433.92 MHz, 434.15 MHz, 434.42 MHz, 868.30 MHz, 868.50 MHz, 868.80 MHz and additional frequencies (some marked * may be restricted in certain regions): 315 MHz *, 288 MHz *, 300 MHz *, 303 MHz *, 306 MHz *, 310 MHz *, 318 MHz *, 330 MHz *, 390 MHz *, 403.55 MHz *, 418 MHz *.
  • OOK narrow-band mode available for higher sensitivity (requires stable transmitter frequency).
  • LED status feedback and Prog button for configuration, learning and erasing operations.
  • Packaging: transparent resealable recyclable clamshell; instructions printed in multiple languages.
