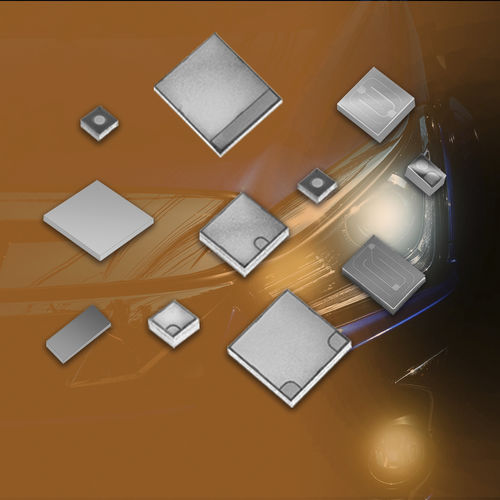

Cree LED’s SR LED Chips are the newest generation of solid-state LED emitters that combine highly efficient InGaN materials
with Cree LED’s device design to deliver superior value and performance. SR LED Chips are among the smallest and brightest in the market enabling compact and highly efficient solutions for a variety of applications, including indicators,
gaming, and video displays. SR1321 LED Chips are designed for use in industry standard single color, RGB and whiteconverted packaging with silicone die attach and standard wire bonding.
FEATURES
• RF Performance @ 5 mA:
− 450 nm – 6.0+ mW
− 460 nm – 5.5+ mW
− 470 nm – 5.0+ mW
− 527 nm – 3.3+ mW
• Low Forward Voltage
− 2.8 V typical @ 5 mA
• For use with Clear Adhesive Die Attach
• 60 μm Bonding Area (both Bond Pads)
• 110 μm Chip Thickness
• 2 kV, Class 2 ESD Rating
APPLICATIONS
• Indicators
− Single color Blue/Green
− Multi-color (RGB)
− White-converted
• White Goods (Appliances)
• Gaming Systems
• Backlight Units (BLU)
• Consumer Electronics
• Automotive Lighting
− Ambient Lighting (RGB)
− Indicators
