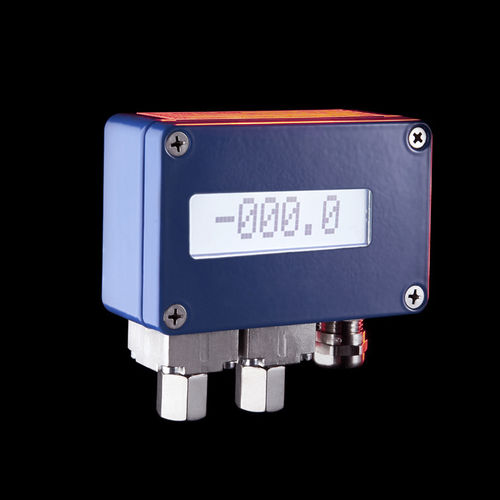

Differential pressure transmitter SH series
membraneanalogdigital

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product

Characteristics

Pressure type
differential
Technology
membrane
Output signal
analog, digital
Mounting
wall-mount
Other characteristics
stainless steel, precision, CE, temperature-compensated, intelligent, for corrosive environments, for the petrochemical industry, silicone oil-filled, for HVAC systems, with LCD display, wet/wet, with digital display, programmable, for marine applications, with aluminum housing, for liquids and gases, custom, with amplified output, corrosion-resistant, with selectable measurement range, for boilers, IP65, oil-filled, for harsh environments, digitally compensated, for water treatment
Process temperature

Max.: 85 °C (185 °F)

Min.: -20 °C (-4 °F)

Pressure range

Max.: 100,000 Pa (14.5 psi)

Min.: 3,000 Pa (0.44 psi)

Description

SH pressure transmitters are developed for measuring gas and liquid pressures. They find applications in many industries like water supply & agricultural engineering, heating engineering, laboratories, machine construction, etc. It possess a nominal range of pressure different between ± 10kPa & ±100kPa. The maximum common mode pressure is 10times Pdif nominal and the maximum overpressure is 20times Pdif nominal. The maximum error percentage is 1, error in zero temperature is typ. 0.1% maximum 0.3%/10°C and the span temperature error is typ. 0.1% max. 0.3%/10°C. The operating temperature range is -25 ÷ 85°C(-20 ÷ +70°C with display). The media and storage temperature range is -25 ÷ 100°C. The storage temperature range with display is -25 ÷ 80°C. The supply voltage is 5 ÷ 36V dc and the supply current is typ. 4mA. The analog output is 4 ÷ 20mA 2wire or 0 ÷ 20mA 3wire.
