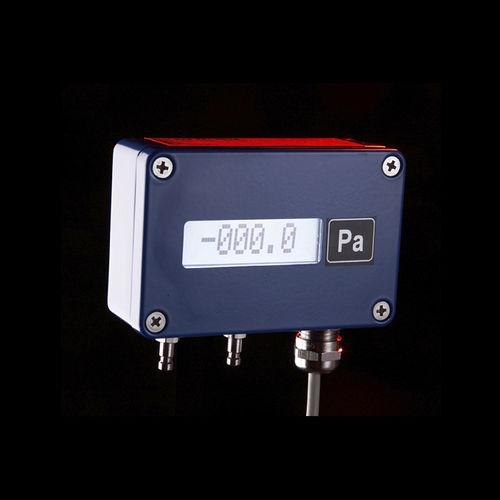

Differential pressure sensor SV series
membraneanalogdigital output

differential pressure sensor
differential pressure sensor
differential pressure sensor
differential pressure sensor
differential pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
membrane
Output signal
analog, digital output
Mounting
wall-mount
Other characteristics
CE, stainless steel, OEM, for railway applications, for OEM, precision, with amplified output, process, temperature-compensated, intelligent, custom, with selectable measurement range, for HVAC systems, for engines, digitally compensated, for the aeronautical industry, IP65, low pressure, with display, with LED display, combined, with aluminum housing
Process temperature

Min.: -10 °C (14 °F)

Max.: 50 °C (122 °F)

Pressure range

Min.: 50 Pa (0.01 psi)

Max.: 3,000 Pa (0.44 psi)

Description

Used in a wide application for air conditioning, combustion process control, ventilation and clean rooms monitoring, pressure transmitters are especially designed for low and very low pressure differences measuring. They can measure both positive and negative pressure differences as well as overpressure and underpressure against ambient atmosphere. The unit has a small additional solenoid valve which an internal program controls. Periodically the valve disconnects the pressure inputs of the pressure sensor for a 300 ms period which is when offset correction is measured and recalculated. Self zeroing period can be set from 10 minutes up to 256 hours or can be switched-off.The transmitters have a nominal pressure range of +/- 50 Pa to +/- 3 kPa. Overpressure is 20 kPa and common mode pressure is 10xPdif, max. 20kPa.
