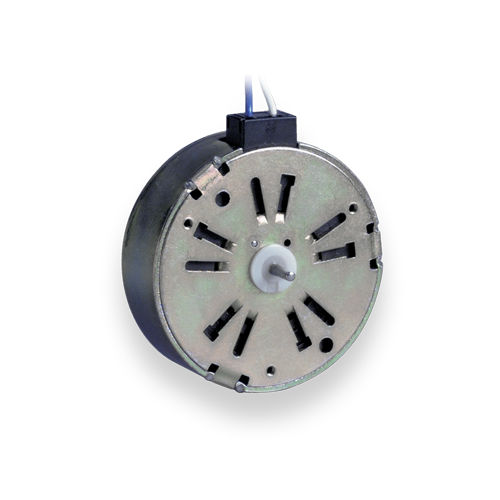

Synchronous motor 82510
ACIP40IP30

synchronous motor
synchronous motor
synchronous motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Protection class
IP40, IP30
Configuration
micro
Applications
for pumps, for medical equipment, for water treatment applications
Other characteristics
reversible, UL certified
Power

Max.: 3 W
(0.004 hp)

Min.: 0.2 W
(0 hp)

Torque

Max.: 0.11 Nm
(0.0811 ft.lb)

Min.: 0.0025 Nm
(0.0018 ft.lb)

Rotational speed

Max.: 720 rpm
(4,523.89 rad.min-1)

Min.: 250 rpm
(1,570.8 rad.min-1)

Diameter

35 mm, 47 mm, 51 mm, 57 mm, 65 mm
(1.38 in, 1.85 in, 2.01 in, 2.24 in, 2.56 in)

Description

AC Synchronous Motors are the best solution for applications that require constant movement and a low torque, like in in medical equipment, valves, pumps and water treatment. Their rotation speed is directly proportional to the supply frequency, that means it’s always constant and independent from the load. Crouzet offers a wide range of standard micromotors available from 0.2W to 3W and unlimited custimization posibilities for your most demanding requirements.

Catalogs
