Centrifugal compressor CM2 series gaselectricfixed
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- gas
- Power source
- electric
- Portability
- fixed
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Applications
- for the gas industry
- Other characteristics
- electric, two-stage
- Pressure
6.5 bar
(94.27 psi)- Flow
Min.: 2,500 m³/h
(88,286.67 ft³/h)Max.: 6,000 m³/h
(211,888 ft³/h)
Description

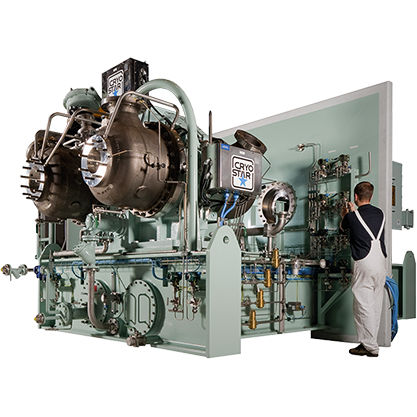

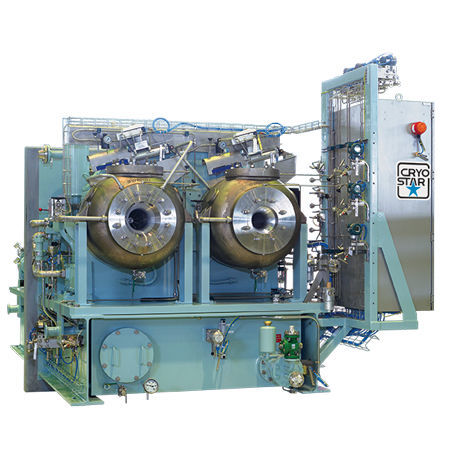

Two stage gas compressor, CM2 series (CM2-200, CM2-300)
Electric motor driven, two-stage cryogenic compressor, type 2-CM, with variable diffusor vanes, complete with lube oil system, seal gas system, accessories and designed according to API 617 if required (with separate lube oil system). at a delivery pressure of 6.5 barA. The whole unit is installed on a single, rigid skid. Typical applications are fuel gas supply, reliquefaction plant feed or BOG recondensing.
Electric motor driven, four-stage cryogenic/warm compressor, with variable diffusor vanes on first stage, complete with lube oil system, seal gas system, accessories and designed according to API 617 if required (with separate lube oil system).
The unit is installed on a single, rigid skid. Typical applications are fuel gas supply or BOG recondensing.
Catalogs
No catalogs are available for this product.
See all of Cryo Star‘s catalogsOther Cryo Star products
CRYOGENIC COMPRESSORS & BLOWERS
