Screw compressor SCM 360gaselectrically-poweredfixed
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- gas
- Power source
- electrically-powered
- Portability
- fixed
- Lubrication
- oil-bath
- Applications
- for fuel
- Other characteristics
- single-stage, high-performance, with frequency control
- Pressure
13 bar
(188.55 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 2,900 m³/h
(102,412.53 ft³/h)- Power
Min.: 0 kW
(0 hp)Max.: 660 kW
(897.35 hp)- Length
6 m
(19'08" )- Width
4 m
(13'01" )- Height
2.9 m
(9'06" )- Weight
23 t
(25.4 us ton)
Description

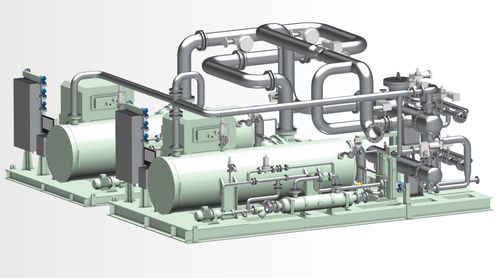

SCM 360 oil-flooded screw compressor is a high-performance BOG screw compressor ideally suited to LNG tank pressure control and fuel gas supply on LNG carriers.
The single-stage oil-flooded compressor, utilising well-referenced technology and VFD volume control, offers a robust solution for marine fuel gas applications.
The unit is offered in a packaged skid incorporating all the oil injection system, oil removal and aftercooler required for normal
