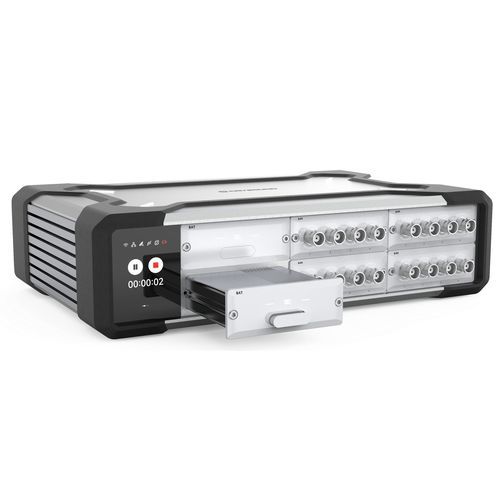

Sound data acquisition system CRY5820 SonoDAQ Pro

voltagetemperaturepower

CRYSOUND launches the CRY5820 SonoDAQ Pro, integrated with OpenTest software. Featuring modular scalability, 170 dB dynamic range, and PTP/GPS synchronization, it ensures reliable operation in lab and field environments. - Flexible Scalability Expandable to 1000+ Channels Modular design supports 4-24 channels per unit, expandable to 1000+ channels via daisy-chain, star, or hybrid topologies. Each slot supports independent sampling rates. - Nanosecond-Level Synchronization Achieves <±100 ns channel-to-channel skew across distributed systems via IEEE 1588 PTP and GPS timing, eliminating bulky sync cables. - Capture Any Signal Acoustic, Vibration, and Beyond Supports noise, vibration, strain gauges, thermocouples, charge, voltage/current inputs — handling acoustic, vibration, thermal, and electrical signals in one system. - Low Noise Floor and Wide Dynamic Range 32-bit ADC, 170 dB dynamic range, 1.3 µV noise floor captures powerful impacts and faint anomalies with precision. - Robust Design with Industrial-Grade Protection Aluminum alloy frame with carbon fiber reinforcement, IP43 rating, -10°C to +50°C operating range, and triple power options (adapter, PoE, hot-swappable batteries). - Open Interfaces SonoDAQ provides open-standard interfaces such as ASIO and openDAQ, ensuring seamless compatibility with a wide range of test and analysis software platforms. Key Technical Specifications - Dynamic Range: 170 dB - Resolution: 32-bit - Isolation: 1000V - Channels/Chassis: 24 - Data Synchronization: IEEE 1588 PTP and GPS - Power Supply: DC input/PoE/Battery - Sampling Rate: (8/16/24/32/48/96/192/25.6/51.2/102.4/204.8) kHz, Configurable - Noise Floor: ≤1.3 µV (20 Hz ~ 20 kHz) - Max Input Voltage: 31.4 Vpk - Max Output Voltage: 30 Vpk - Output Power: 10W @ < 0.2% THD+N (8Ω load) - Cross Talk: < -147 dB @ 1 kHz - Internal Storage: 256GB TF card (2TB optional) - Operating Temperature: -10°C ~ 50°C - Protection Class: IP 43
