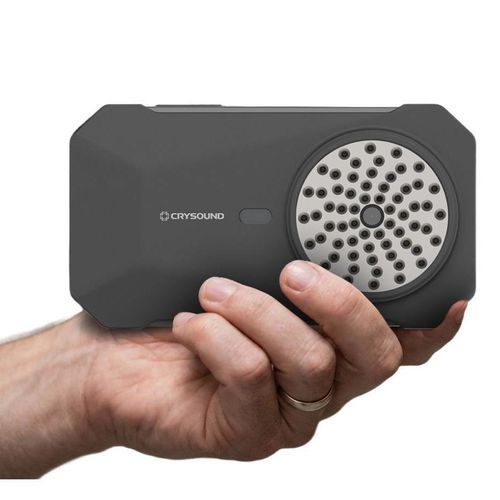

Acoustic imager CRY8024 SonoCam

laboratoryfor pipesHVAC

Overview
SonoCam POCKET is a pocket acoustic imaging camera that overlays a live soundmap on a real image to help technicians pinpoint sound and ultrasound sources quickly, document evidence, and prioritize repairs. Built for rapid deployment across industrial sites, it supports non-contact compressed air/gas/vacuum leak detection, partial discharge (PD) screening, and fast troubleshooting of HVAC and rotating machinery. The device offers Auto Frequency Range Selection, one-tap recording, and Wi‑Fi/USB‑C workflows for on-site sharing and standardized reporting.

For more information and direct purchase: Click “Go to the CRYSOUND website for more information” above.

Key Applications

• Compressed air, gas & vacuum leak detection — locate likely leak sources on fittings, valves, manifolds and pipelines without contact and capture evidence for repair prioritization.
• Partial Discharge (PD) screening — screen and localize PD hotspots in switchgear, bus ducts, terminations and insulators from a safe distance.
• HVAC system troubleshooting — detect airflow noise, duct leaks and failing dampers to reduce diagnostic time.
• Workshop & vehicle diagnostics — identify abnormal acoustic signatures during maintenance when sounds are audible but hard to locate.

Product Highlights

• Real‑time acoustic imaging with a 64‑channel microphone array and overlay heatmap for far‑field localization.
• Wide frequency coverage (audible + ultrasound) and inspection range suitable for 0.3–120 m typical distances.
• Auto Frequency Range Selection for simplified setup plus manual fine‑tuning for advanced use.
• One‑tap capture: photo, video and audio recording with 32 GB internal storage and built‑in WLAN hotspot for on‑site preview and sharing.
• Smartphone‑like workflow to accelerate technician adoption and fleet deployment.
• Field‑ready construction with IP54 rating and 1.5 m drop‑test for industrial use.

Capture, Share & Reporting

• One‑tap photo/video/audio capture with structured file formats for evidence collection (.jpg, .mp4, .wav, .cdat).
• Built‑in WLAN hotspot enables on‑site preview and download via the Acoustic Link mobile app.
• Import via Wi‑Fi or USB‑C to add notes/tags and generate standardized inspection reports on mobile or PC.

Designed for Field Use

• Pocket‑sized form factor for inspections in tight, elevated and hard‑to‑reach locations.
• Industrial durability — IP54 protection and 1.5 m drop‑tested housing.
• Intuitive UI reduces training time and supports preventive inspection programs across teams.

Technical specifications

• Mic array: 64 channels
• Frequency range: 2 kHz – 65 kHz
• SPL: 28 – 132 dB
• Dynamic range: up to 12 dB
• Inspection distance: 0.3 – 120 m
• Field of view (FOV): 66° (H) × 52° (V)
• Camera resolution: 5 MP
• Focal length: 2.26 mm
• Autofocus: Yes
• LED light: Yes
• Display resolution: 800 × 480
• Screen size: 4.3 inches (capacitive touchscreen)
• Brightness: up to 400 nits (adjustable)
• Storage capacity: 32 GB internal
• Storage formats: .jpg (picture), .mp4 (video), .wav (audio), .cdat (data)
• Maximum video length: 5 minutes
• Data export: USB‑C and Wi‑Fi
• Physical size: 150 × 83 × 27.5 mm
• Weight: 270 g
• Wi‑Fi: 802.11 a/b/g/n/ac
• Bluetooth: BT 5.2
• Battery: 3.85 V, 3900 mAh
• Power / charging: 9 V DC / 1 A (USB‑C charging); USB 3.0 supports charging, HDMI, data export and headphone output
• Battery operating time: up to 4 hours
• IP rating: IP54
• Operating temperature: -10 to +50 °C
• Storage temperature: -20 to +55 °C
• Operating humidity: 10 – 95% non‑condensing
• Features: sound visualization & localization; gas leak detection; partial discharge detection; photo/video recording; automatic or manual frequency filter
• Languages supported: Chinese, English, Korean, French, Japanese, Russian, German, Italian, etc.
