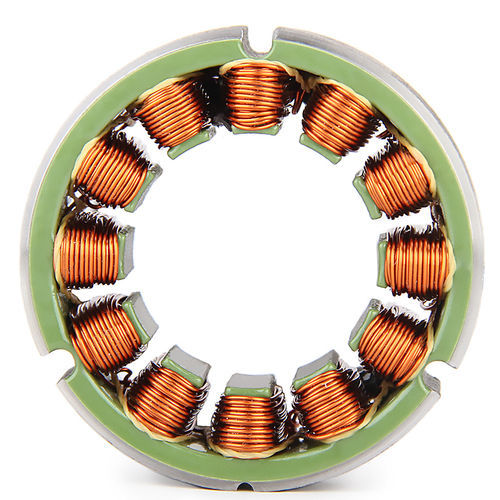

Frameless torque motor RI50 KV100DCthree-phaseBLDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC, three-phase
- Type
- BLDC
- Voltage
- 48 V, 24 V, 36 V
- Protection class
- rugged, robust
- Configuration
- permanent magnet, frameless, large
- Number of poles
- multipole
- Cooling mechanism
- air-cooled, air-cooled
- Applications
- for machine tools, packaging machine, for robotics, industrial, heavy-duty, agricultural, for automotive applications
- Other characteristics
- direct-drive, high-torque, high-precision, low-speed, low-noise, high-inertia, precision, with built-in encoder
- Power
Max.: 672 W
(0.914 hp)Min.: 240 W
(0.326 hp)- Intensity
Max.: 14 A
Min.: 5 A
- Torque
Max.: 1.63 Nm
(1.2022 ft.lb)Min.: 0.58 Nm
(0.4278 ft.lb)- Rotational speed
1,365 rpm, 2,240 rpm, 3,020 rpm
(8,576.55 rad.min-1, 14,074.34 rad.min-1, 18,975.22 rad.min-1)- Diameter
54 mm
(2.13 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
RI50 KV100
$61.90
Available points：0 Points ▏ Points reward：61 Points
Promotion
Every $200, $20 off
• Voltage:12V-48V
• Lower cogging torque for easy control
• High torque density and dynamics
• High precision control with 0.01°
Specifications-RI50
Weight(g) : 180.8
Voltage(V) : 24/36/48
Rated Torque(N.m) : 0.58
Peak Torque(N.m) : 1.67
Max Speed@Rated Torque(Rpm) : 1365/2240/3020
Rated Current(A) : 5.3
Peak Current(A) : 15.25
Kt(N.m/A) : 0.1095
Ke(V/rpm) : 0.0115
leading wire : 200mm 18#AWG
Kv(Rpm/v) : 96
Km(Nm/Vw) : 0.0835
Moment of inertia(g-cm2) : 22.81
Pole-pairs : 7
Phase to Phase resistance(mQ) : 1420
Phase to Phase Inductance(uH) : 1500
OD(mm) : 54
ID(mm) : 22
Height(mm) : 24
Max Torque Weight Ratio(N.m/kg) : 9.24
